VWR VistaVision Trinocular Microscope w/ 4 PL Objectives & Mechanical Stage Used

VWR VistaVision Trinocular Compound Microscope — Used, Good Cosmetic Condition

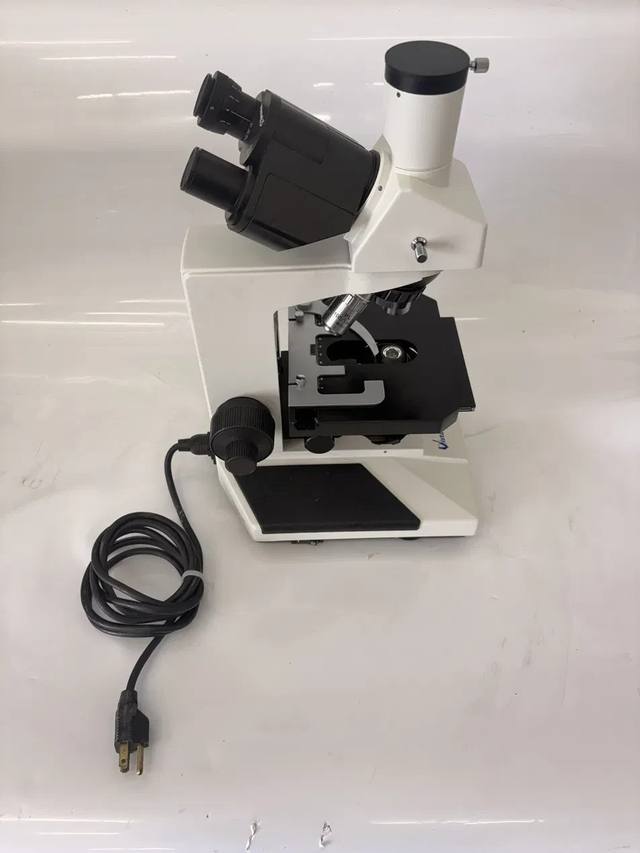

You are purchasing the exact VWR VistaVision upright compound microscope shown in the photos. This is a lab-grade binocular/trinocular biological microscope with a mechanical stage, plan achromat (PL) objective set, and built-in transmitted illumination.

Technical Specifications

Brand: VWR (VistaVision series)

Head: Trinocular, Siedentopf-style, inclined binocular viewing with third vertical photo/camera port (cap included)

Interpupillary adjustment: 55–75 mm scale

Diopter adjustment: Yes, on one eyepiece tube (-1 to +3 scale)

Optical system: 160 mm finite tube length / 0.17 mm coverslip correction (DIN standard, RMS thread)

Objectives (4-position revolving nosepiece):

• PL 4/0.1
• 160/– PL 10/0.25
• 160/– PL 40/0.65
• 160/0.17 (red band — see photos)
• PL 100/1.25 Oil · 160/0.17

Stage: Mechanical X-Y stage with coaxial drive, slide holder/clip arm, graduated verniers on both axes

Condenser: Sub-stage Abbe condenser with iris diaphragm and filter holder, rack-and-pinion height adjustment

Focus: Coaxial coarse and fine focus with adjustable focus-tension collar (graduated 40–160)

Illumination: Built-in base illuminator, 120V, standard 3-prong grounded US power cord (attached)

Frame: Cast metal stand with rubber-footed base

Condition

Used equipment removed from a working facility. Cosmetically clean with light handling marks consistent with normal lab use. Optics and mechanics appear intact; stage and focus travel operate smoothly. Sold as-is with no warranty. Please review all photos carefully, as they are of the actual item you will receive.

Eyepieces are included as shown. No slides, oil, dust cover, case, or accessories are included beyond what is pictured.

• Shipping
• This item will be shipped via UPS Ground or USPS. Shipping for this item will be $39.99
