Bio-Rad iCycler iQ5 Real Time PCR Detection System - Powers On

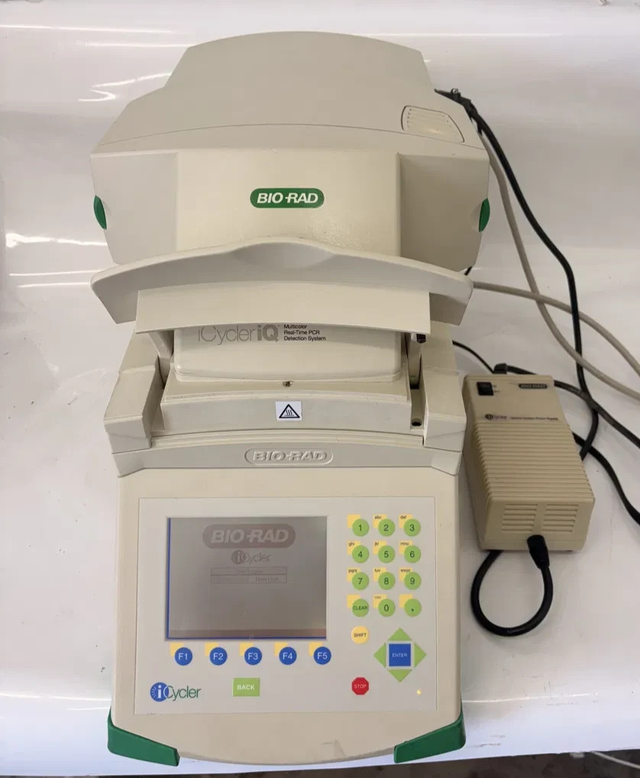

Bio-Rad iCycler iQ Multicolor Real-Time PCR Detection System — complete three-piece system consisting of the iCycler Thermal Cycler base, the iCycler iQ Optical Module, and the iCycler Optical System Power Supply.

WHAT'S INCLUDED

Bio-Rad iCycler Thermal Cycler — Serial No. 582BR 011615

Bio-Rad iCycler iQ Optical Module — Serial No. 584BR 4071

Bio-Rad iCycler Optical System Power Supply — Model WSX4001

Power cords and RS-232 interface cable as pictured

TECHNICAL SPECIFICATIONS

Thermal Cycler Base (582BR)

Peltier-driven heating and cooling system for rapid ramp performance

96-well reaction block format, 0.2 mL tubes/plates

Thermal gradient capability for annealing temperature optimization

Input: 100–120 / 220–240 VAC, 50–60 Hz

Max Power: 910 VA

Fuses: 100–120V T 8A / 220–240V T 4A

• Rear voltage selector currently set to 115V
• Rear DB9 (RS-232) serial port for PC communication

Front control panel: backlit LCD, alphanumeric keypad, F1–F5 soft keys, ENTER/BACK/STOP, directional pad

CE marked, EN 61010-1, Made in U.S.A.

iQ Optical Module (584BR)

Multicolor real-time fluorescence detection module, mounts directly to the thermal cycler base

Broad-spectrum light source with filter-based optical design allowing selection of optimal excitation and emission wavelengths for discrimination between multiple fluorophores Bio-Rad

• CCD detector with a 350,000 pixel array for simultaneous imaging of all 96 wells Bio-Rad
• Fan-cooled 50-watt tungsten-halogen excitation source
• Compatible with SYBR Green I and standard multiplex fluorophore chemistries

Made in U.S.A.

Optical System Power Supply (WSX4001)

Input: 100–250 VAC, 50/60 Hz, 2.5–1.0 A

Output: 5V @ 3A, 12V @ 5A, −12V @ 250 mA, 24V @ 500 mA

ON/OFF rocker switch, CE / TÜV certified, Made in U.S.A.

CONDITION

Used, removed from a working laboratory environment. The unit powers on and boots to the Bio-Rad iCycler User Logon screen as shown in the photos. Beyond confirming power-up and display function, no further testing has been performed. No PCR run, thermal calibration, optical calibration, or well-uniformity test has been conducted, and the optical module's lamp and CCD have not been verified.

Cosmetically the system is in good used condition with normal lab wear: light soiling, minor scuffs, and yellowing of the plastic on the power supply housing consistent with age. No cracks or broken housings observed.

SHIPPING

This item will be shipped via UPS Ground or USPS. Shipping for this item will be $149.99.
