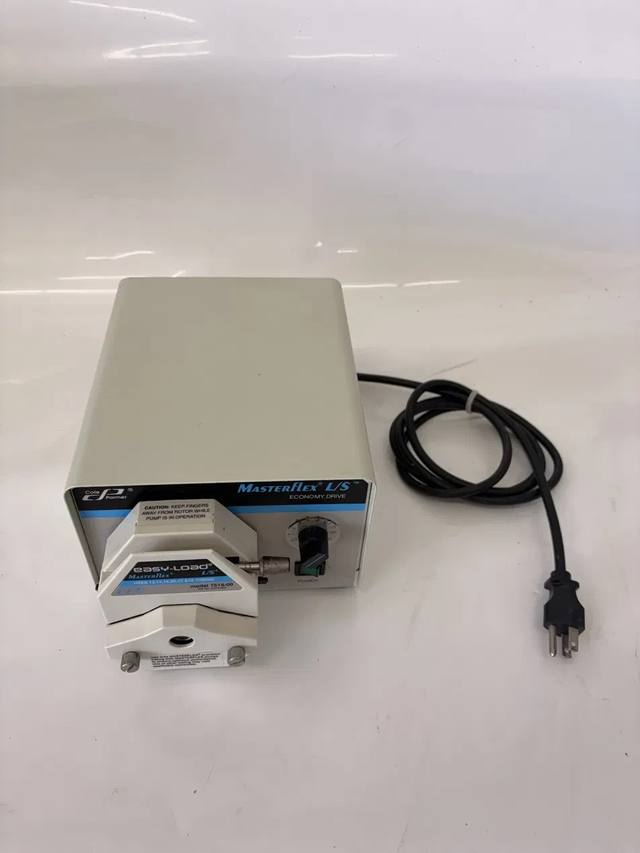

Cole-Parmer Masterflex L/S Peristaltic Pump Drive 7554-90 w/ 7518-00 Head Used

Cole-Parmer Masterflex L/S Economy Variable-Speed Peristaltic Pump Drive, Model 7554-90, with Masterflex Easy-Load L/S Pump Head, Model 7518-00 — Used

Complete pump package removed from a working laboratory environment. Exact item pictured is the item you will receive.

Drive Specifications — Model 7554-90

Manufacturer: Cole-Parmer Instrument Company (mfg. by Barnant Co., Barrington, IL, USA)

Type: Variable-speed peristaltic pump drive

Electrical: 115 VAC, 50/60 Hz, 1 PH, 1.5 Amps

Motor: 1/20 HP (0.05 HP), 37 Watts, unidirectional

Speed Range: 20 to 600 RPM

Speed Control: ±5%

Maximum Torque: 90 oz-in

Flow Range: 1.2 to 2,900 mL/min (dependent on pump head and tubing size)

Controls: Single-turn analog speed dial with independent on/off rocker switch and green power indicator

Pump Heads Accepted: 1

Housing: Painted steel, stackable

Certification: UL and cUL Listed Industrial Control Equipment #6L57, Type 1

Dimensions: 9 x 7 x 6 in. (229 x 178 x 152 mm)

Line Cord: Attached, standard U.S. 3-prong grounded plug

Note: Controller is not overspeed protected

• Pump Head Specifications — Model 7518-00
• Masterflex Easy-Load L/S pump head

Cartridge-style head with thumb-screw mounting and front-load lever design for fast tubing changes

• Accepts Masterflex L/S precision tubing sizes 13, 14, 16, 25, 17, and 18
• U.S. Patent No. 4,813,855
• Compatibility

The 7554-90 drive accepts a range of Masterflex L/S pump head types, including Standard, Easy-Load, Easy-Load II, Quick Load, High-Performance, PTFE-Tubing, and PTFE-Diaphragm heads. Typical applications include fluid transfer, dosing, recirculation, filtration feed, and general laboratory and light industrial liquid handling.

Condition

Used, good cosmetic condition. Painted steel housing is clean with light handling marks and no dents. Front panel graphics, speed dial, and power switch are intact. Pump head housing is clean with intact labeling; rotor and occlusion bed are present. Drive coupling shaft shows normal surface wear and light oxidation consistent with laboratory use. Power cord and plug are in good condition with no cuts or exposed conductors.

Included (1) Masterflex L/S Economy Drive, Model 7554-90 (1) Masterflex Easy-Load L/S Pump Head, Model 7518-00 (mounted) (1) Attached power cord

Nothing else is included. No tubing, fittings, foot switch, manual, or additional pump heads.
