Mini Skid Steer Parts & Upgrades

Start with your machine and the problem

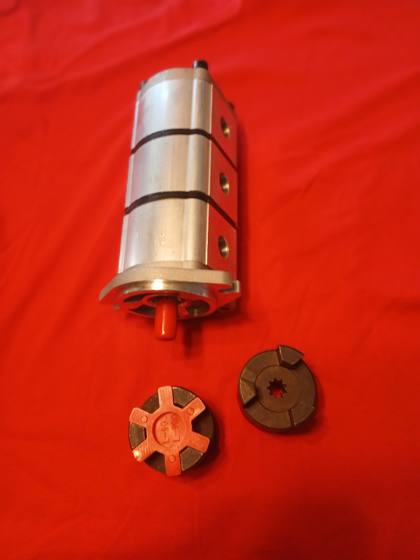

Most parts here list fit for stand-on mini skid steers such as the Diggit SCL850, Hurricane HRC700 / HRC600, EINGP, Valley Pioneer, Hengyiquan HYQ850 and Vorx. Check the fit line on each listing. Several pumps and kits ask you to choose your machine model at order, and pumps come in 2-section and 3-section versions, so match the section count to your machine.

Wear and strength upgrades

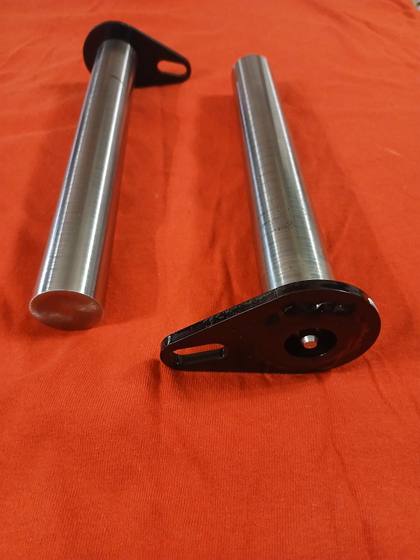

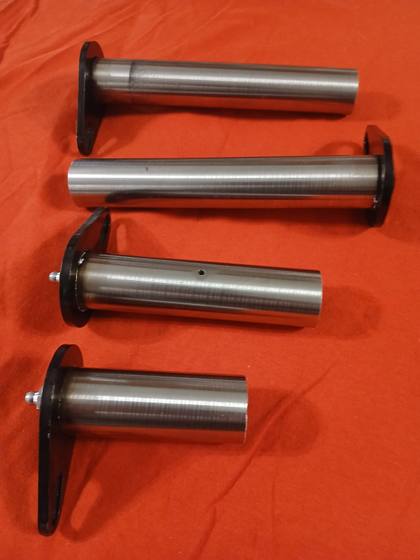

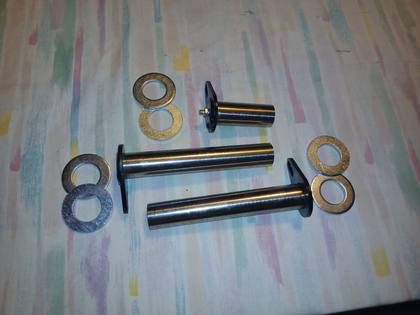

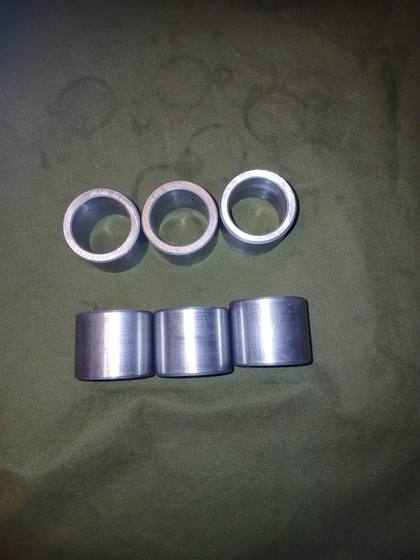

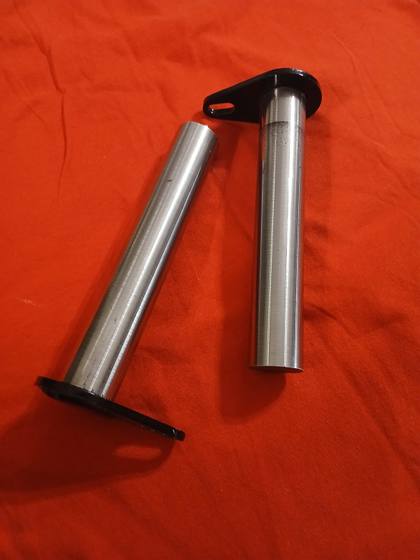

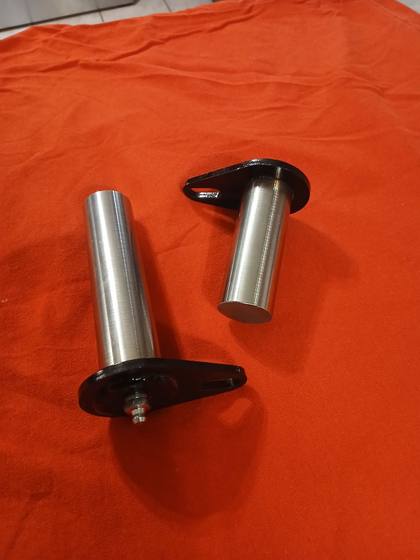

• Pins and bushings: Hardened 4140 QT pins (146,000 psi yield, 156,000 psi tensile) are offered for lift arms, attachment plate pivots and tilt cylinders, as single sets or a 4-pin set. Steel cylinder pin bushings (1018 steel) replace plastic factory bushings. Shim washers take up play at the lower bucket pivot and tilt cylinder.

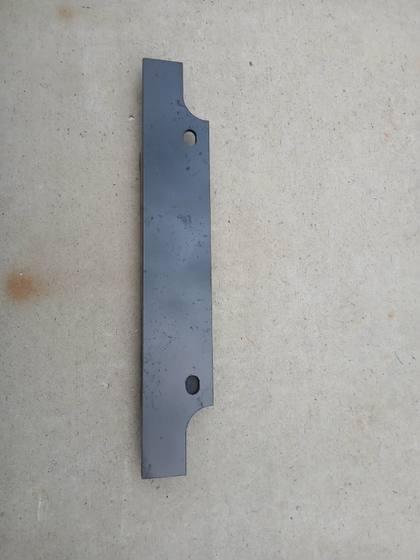

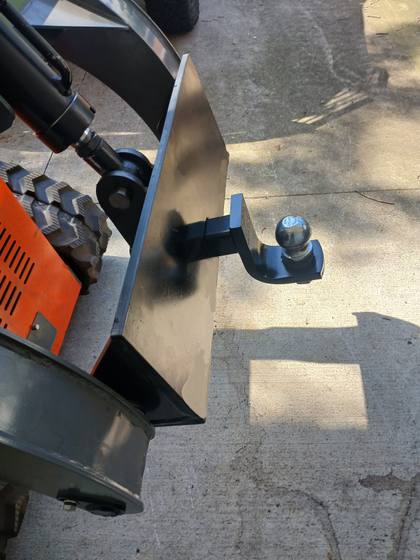

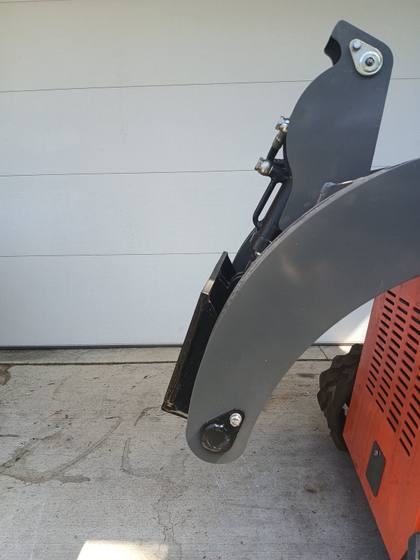

• Quick attach plates: The Dingo-style plates are 1/2 in A36 steel. One version adds a built-in 2 in hitch receiver; the hitch is not included. A weld-on adapter bar lets a factory bucket fit a Dingo-style plate.

Hydraulics, monitoring and service

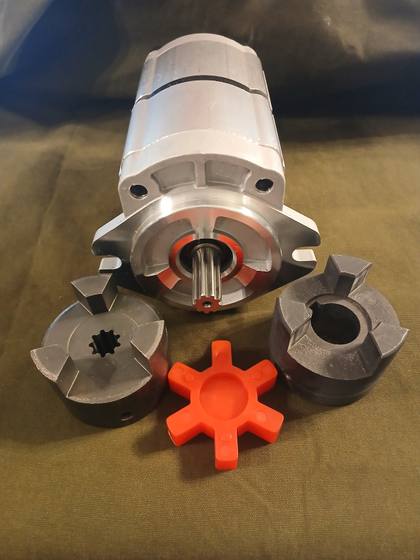

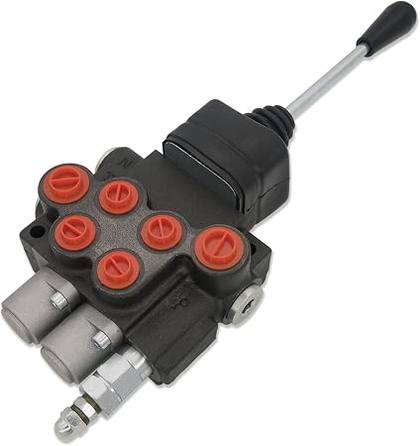

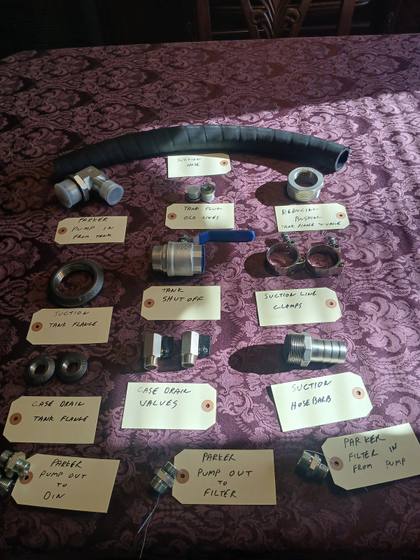

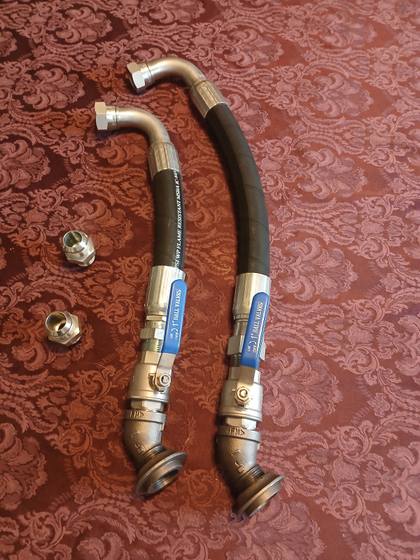

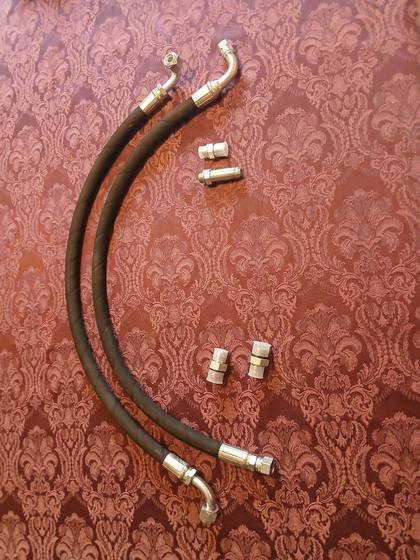

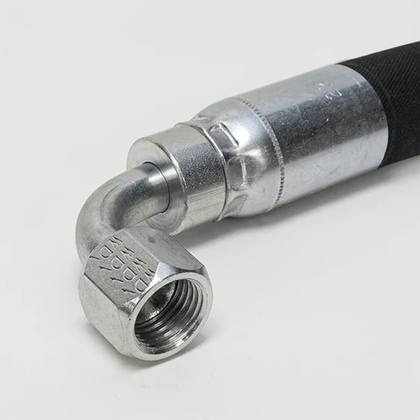

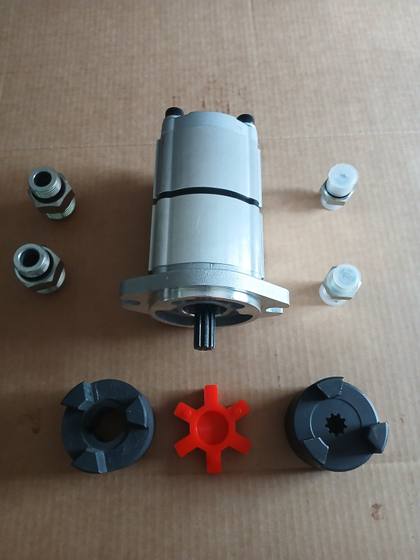

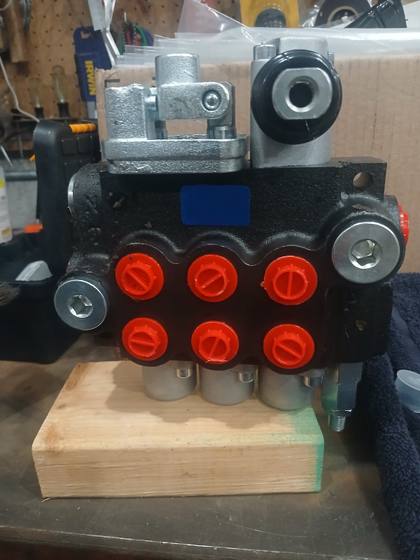

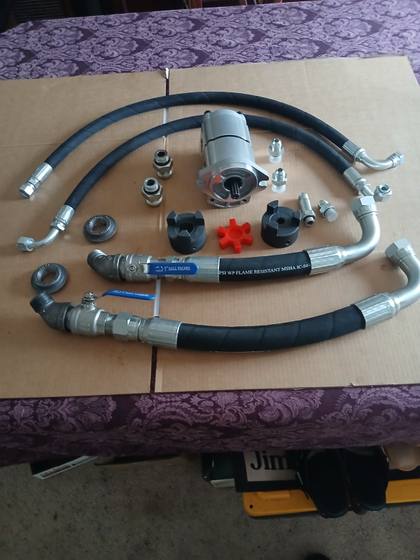

• Pumps and lines: Choose a pump alone, a pump with a 1 in suction line set, or the complete kit with 1 in suction and 1/2 in pressure lines. The combo and complete kits need tank removal and welding. A 3/4 in return line kit and larger-port control valves are listed for reducing restriction.

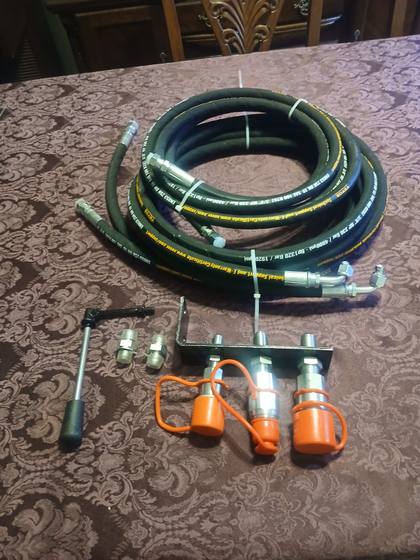

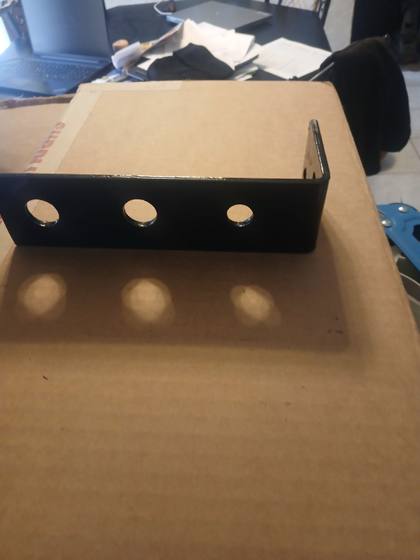

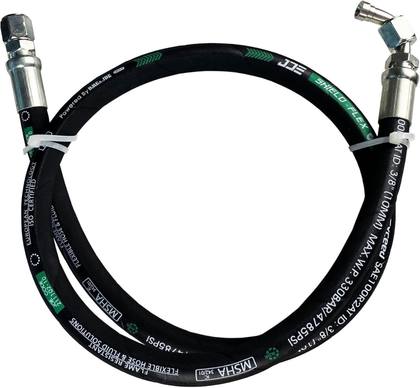

• Auxiliary hydraulics: The 3-line kits come in 3/8 in or 1/2 in pressure sizes and need a dash panel cut. If you already have auxiliary lines, a case drain hose kit, coupler bracket or control lever can be bought separately for motor-driven attachments.

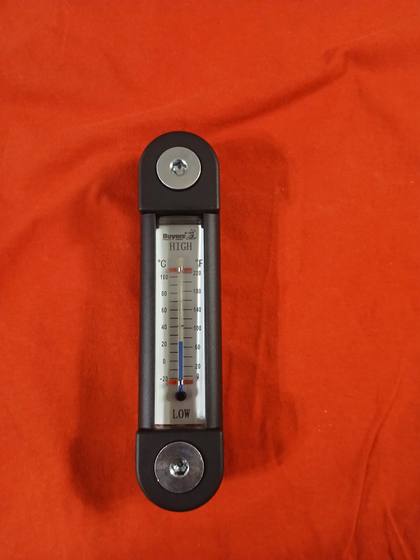

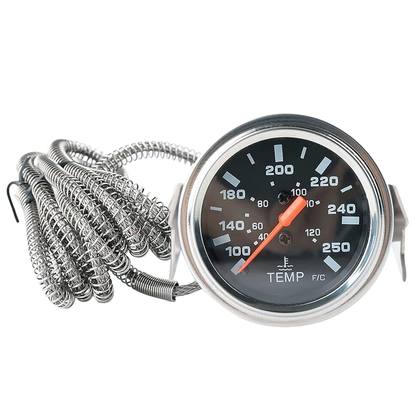

• Gauges: Temperature and tank level gauges are sold individually, the temperature and filter gauges come as a pair, and a 3-gauge combo covers all three. The tank level gauge needs an empty tank to install.

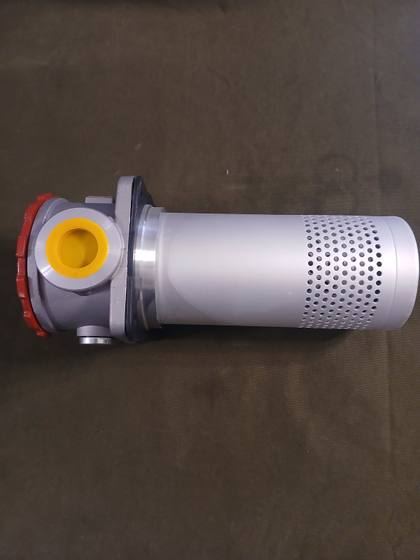

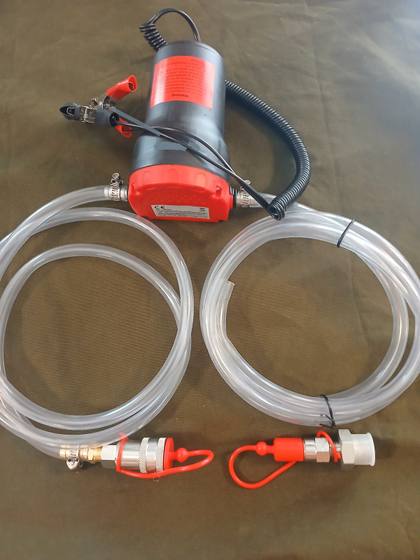

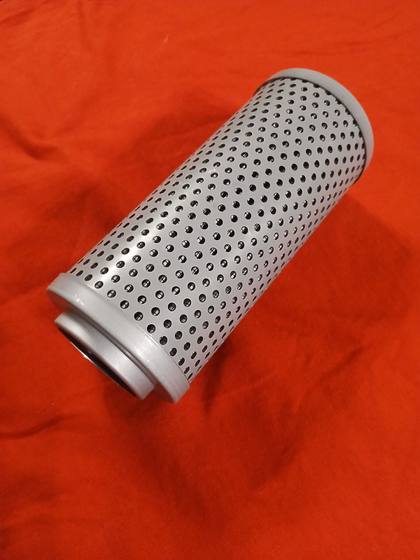

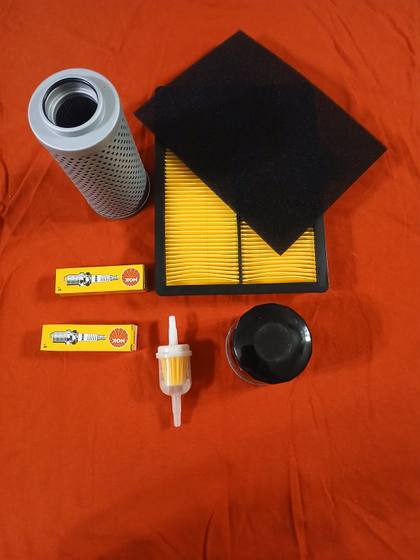

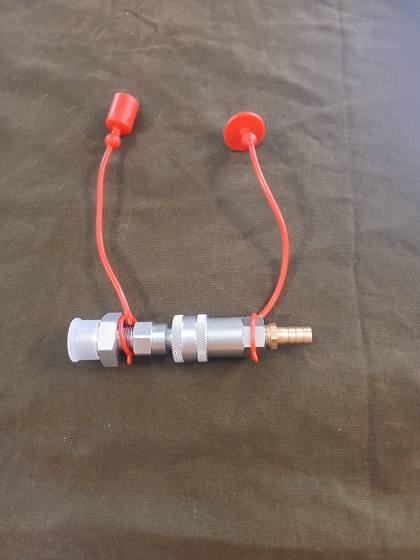

• Filters and fluid: The FAX-63 housing is sold without an element. Cartridges come in 10 or 5 micron. A tune-up kit bundles air, oil, 10 micron hydraulic and fuel filters with spark plugs, and a quick-connect drain kit makes oil changes cleaner.

Drive and undercarriage

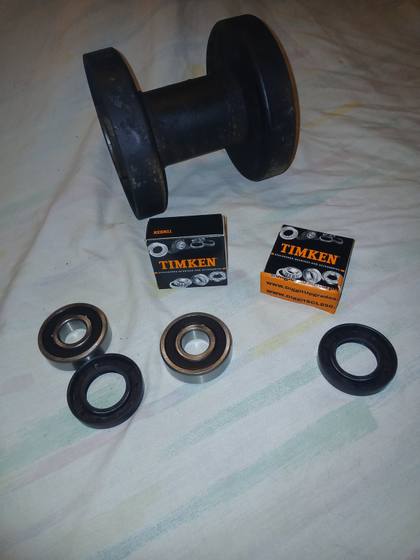

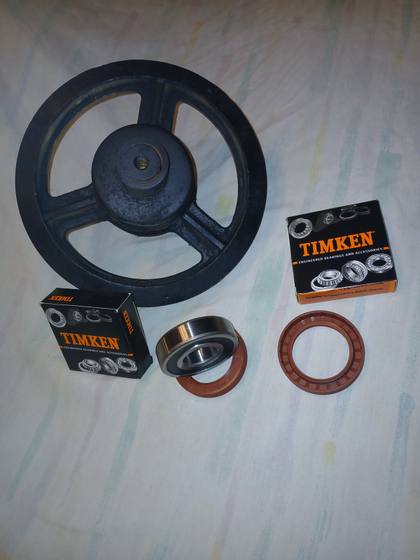

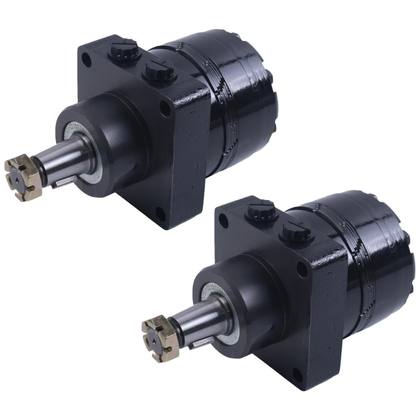

BMER-2-300 wheel motors are listed at about 50% more torque than factory motors, and a BMER-2-375 set and 1/2 in wheel motor hoses are also available. Bottom roller and idler bearing sets come with OEM-style or Timken bearings. One roller set rebuilds one bottom roller.

Ordering

Chupp Industrial, based in Chouteau, Oklahoma, ships nationwide by freight. Looking for tools to run on your machine? See our mini skid steer attachments.
