Baldor Reliance 1/2 HP 230/460V 3-Phase Hydraulic Power Unit Pump Assembl

Description:

Condition:

Pre-owned in excellent condition. Removed from a working environment and stored indoors. Shows light cosmetic wear from storage but appears clean and ready for use.

Specifications:

Manufacturer: Baldor Reliance

Model / Cat. No.: CM3538

Spec: 34A62-872

Horsepower: 1/2 HP

Voltage: 230/460V

Phase: 3-Phase

Amperage: 2 / 1 A

RPM: 1725

Frame: 56C

Frequency: 60 Hz

Service Factor: 1.25

Enclosure: TEFC (Totally Enclosed Fan Cooled)

Mounting: Base mount with hydraulic reservoir bracket

Assembly Details:

• Includes hydraulic pump (mounted to motor shaft)
• Fitted with hydraulic hose fittings, elbows, and pressure relief block
• Integrated valve manifold and steel mounting base
• Complete system is pallet-mounted and ready for freight shipment
• Ideal for machine tools, press equipment, or hydraulic test stands

Approximate Dimensions & Weight:

Base footprint: 24” L × 12” W

Overall height: ~12”

Weight: Approx. 85 lbs

Description:

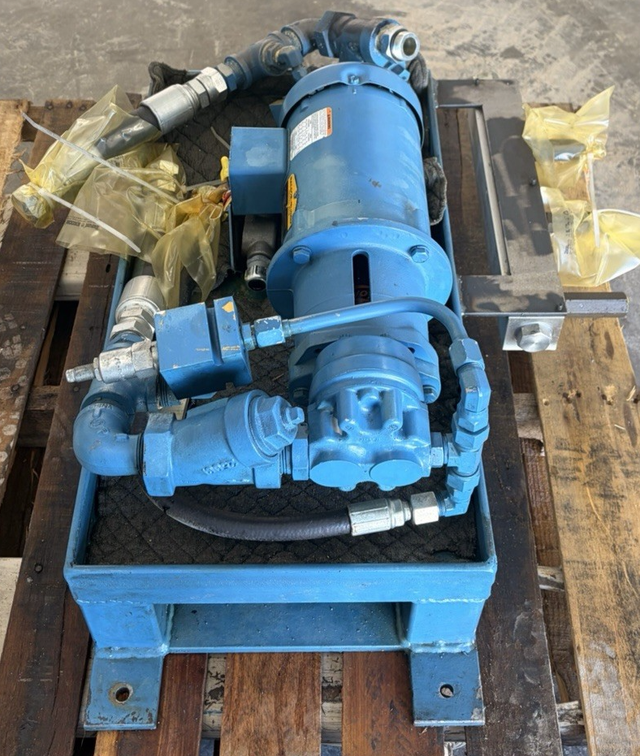

This is a complete Baldor CM3538 industrial motor and hydraulic pump assembly built for heavy-duty industrial applications. The 1/2 HP 3-phase motor powers a precision pump through a direct coupling, ideal for continuous-duty service.

The setup includes high-pressure fittings, manifold, and return plumbing.

Excellent choice for retrofitting or replacing an existing hydraulic power unit in a milling machine, press, or CNC support system.

Shipping:

This item will ship freight on a pallet .

Freight Shipping Policy:

There is a flat rate $199.99 freight shipping charge for this item to a commercial business address with dock or forklift available.

If you do not have a commercial location, we can ship to a local freight terminal in your area for pickup at your convenience for the flat rate fee.

If you would like this shipped to a residential or limited access address, there will be an additional $100 freight charge.

If you need a lift gate truck , there is an additional $100 charge.
