EFD MINAC 70/110 Twin Induction Heating Brazing System 2x70kW Dual HHT 400-480V

EFD MINAC 70/110 Twin Mobile Induction Heating & Brazing System Condition

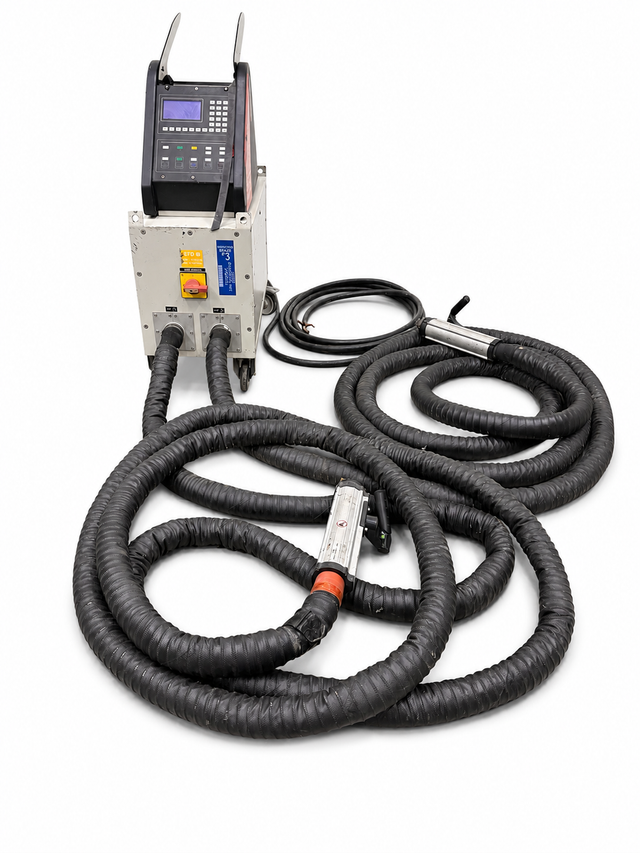

Used industrial surplus. Unit is in good cosmetic condition with normal signs of previous industrial use including scratches, scuffs, paint wear, and handling marks. Includes the power supply, dual handheld induction transformers (HHTs), water-cooled cables, control console, and rolling cabinet exactly as shown.

This system has not been fully tested by us and is being sold as shown. Please review all photos carefully for cosmetic condition and included components.

Specifications

Manufacturer: EFD Induction

Model: MINAC 70/110 Twin

Serial Number: 211050219

Manufactured: May 2021

• Made in Norway
• Mobile Induction Heating Generator
• Twin Output Configuration
• Dual Independent Handheld Transformers (HHT)

Output Power: 2 × 70 kW

Output Current: 2 × 450 A

Frequency Range: 10–40 kHz

Input Voltage: 400–480 VAC

Input Current: 232 A

• 3-Phase
• 50/60 Hz

Apparent Power: 80.5 kVA

Water Cooled System

Cooling Water Requirement: 2 × 20 L/min

Maximum Water Inlet Temperature: 35°C

Maximum Pressure: 6 bar

Designed for high-performance induction heating applications including brazing, shrink fitting, preheating, hardening, heat treatment, bearing removal, bolt expansion, and other industrial heating processes. Twin-output configuration allows operation of two handheld transformers simultaneously or independently for increased productivity. EFD's Minac series is well known for delivering precise, repeatable, and energy-efficient induction heating in manufacturing, maintenance, and heavy industrial environments.

• Included
• EFD MINAC 70/110 Twin Power Supply
• Integrated Control Console (2) Handheld Induction Heating Transformers (HHT)
• Water-Cooled Flexible Induction Cables
• Rolling Cabinet
• Power Input Cable
• Cooling Water Connections
• Everything shown in the photographs
• Features
• Dual independent induction outputs
• Mobile industrial heating system
• Digital operator interface
• Water-cooled handheld transformers
• Heavy-duty industrial construction
• Precise programmable induction heating
• Suitable for automated or manual heating applications
• Fast, localized heating with minimal heat distortion
• Designed for continuous industrial operation
• Shipping
• Freight Shipping – $600 Flat Rate

Commercial business address with forklift or loading dock included.

Pickup from your nearest freight terminal is also available.

Residential delivery: Add $100

Lift gate service: Add $100

Local pickup is welcome at no charge.

Please contact us before purchasing if you have any shipping questions or would like a freight quote for your location. This unit will be securely palletized to help ensure safe delivery.
