EFD MINAC 70/110 Twin Dual 70kW Induction Brazing Heating System 140kW

EFD Induction MINAC 70/110 Twin Dual 70kW Induction Brazing Heating System

This listing is for an EFD Induction MINAC 70/110 Twin industrial induction heating system. This high-performance mobile induction generator is designed for demanding industrial applications including brazing, heat treating, shrink fitting, soldering, annealing, curing, and other precision induction heating processes.

Manufactured in Norway in May 2021 , this unit features dual independent 70 kW outputs (140 kW total), allowing two handheld transformers to be operated independently or simultaneously for increased productivity. The system was previously used in a General Electric manufacturing facility.

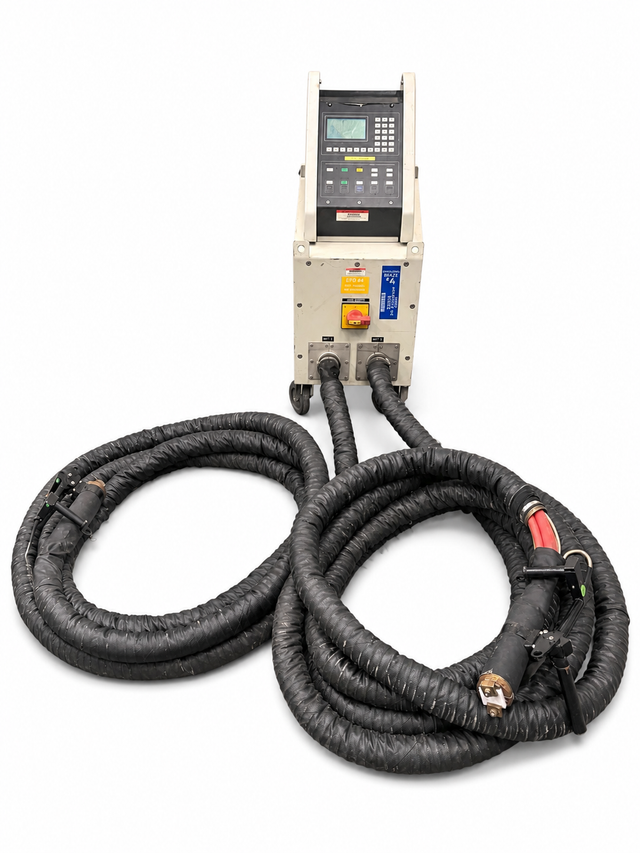

The machine is mounted on a heavy-duty rolling cabinet and includes the original operator control console, dual water-cooled handheld transformers, and attached heavy-duty cables as shown. One induction head is marked "TESTED OK."Specifications

Manufacturer: EFD Induction a.s.

Model: MINAC 70/110 Twin

Serial Number: 211050220

Manufacture Date: 05/2021

Input Voltage: 400–480 VAC

Input Frequency: 50/60 Hz

Input Current: 232 A

Apparent Power: 80.5 kVA

Output Power: 2 × 70 kW (140 kW Total)

Output Current: 2 × 450 A

Frequency Range: 10–40 kHz

Enclosure Rating: IP54

Cooling Water Requirement: 2 × 20 L/min

• Includes
• EFD MINAC 70/110 Twin induction power supply
• Operator control console (2) Water-cooled handheld induction transformers (HHT1 & HHT2)
• Attached water-cooled cables and hoses
• Rolling cabinet
• Everything shown in the photographs
• Condition

This unit is in good overall cosmetic condition with normal signs of industrial use including minor scratches, scuffs, and wear consistent with previous operation. One handheld transformer is labeled "TESTED OK." The incoming electrical power cable has been cut during decommissioning and will require installation of a new power connection before operation. Please review all photographs carefully for cosmetic condition and included components.

Freight Shipping

Flat-rate freight shipping: $600 to a commercial address with a loading dock or forklift.

Terminal pickup is available.

Residential delivery: Add $100

Liftgate service: Add $100

Local pickup is welcome in Chouteau, Oklahoma .

This is a high-value industrial induction heating system well-suited for manufacturing, fabrication, aerospace, automotive, power generation, and other production environments requiring reliable, high-output induction heating. It is being sold as shown.
