AGT H13R Mini Excavator Specs: Weight, Dig Depth and Lift
See the full AGT H13R mini excavator specs, from its 68.9-inch dig depth to its 475-pound lift, and how its weight compares.
The AGT H13R mini excavator is a 1-ton class machine with a 13.5 HP engine, a 475-pound lift capacity and a 30-degree max slope grade. Here are the full AGT H13R mini excavator specs, then how its weight and engine line up with the CFG Industrial KT13R and the AGT H16R. Chupp Industrial has sold all three.
What are the AGT H13R mini excavator specs?
The AGT H13R has a 13.5 HP engine, weighs 1,896 pounds and digs 68.9 inches deep.
- Rated power: 13.5 HP at 3,600 rpm
- Rated torque: 21 lb-ft at 3,060 rpm
- Net weight: 1,896 pounds (860 kg)
- Lift capacity: 475 pounds
- Max digging depth: 68.9 inches (1,760 mm)
- Max digging radius: 120.1 inches (3,050 mm)
- Max dumping height: 62.6 inches (1,590 mm)
- Max bucket digging force: 2,023 lbf (9 kN)
- Bucket: 15.7 inches wide, 0.03 cubic yards
- Dozer blade height: 12.6 inches; dozer depth: 7.8 inches
- Overall height: 7.1 feet
- Overall track length: 48.5 inches
- Platform ground clearance: 16.2 inches
- Fuel tank: 1.7 gallons; hydraulic tank: 3.96 gallons
- Max slope grade: 30 degrees
How does the AGT H13R compare with the KT13R and H16R?
All three have a 13.5 HP engine; by weight, the H13R sits between the lighter CFG KT13R and the 1.5-ton class AGT H16R.
| AGT H13R | CFG KT13R | AGT H16R | |
|---|---|---|---|
| Engine power | 13.5 HP | About 13.5 HP | 13.5 HP |
| Weight | 1,896 lb | About 1,785 lb | About 2,300 lb |
What do the KT13R and H16R come with?

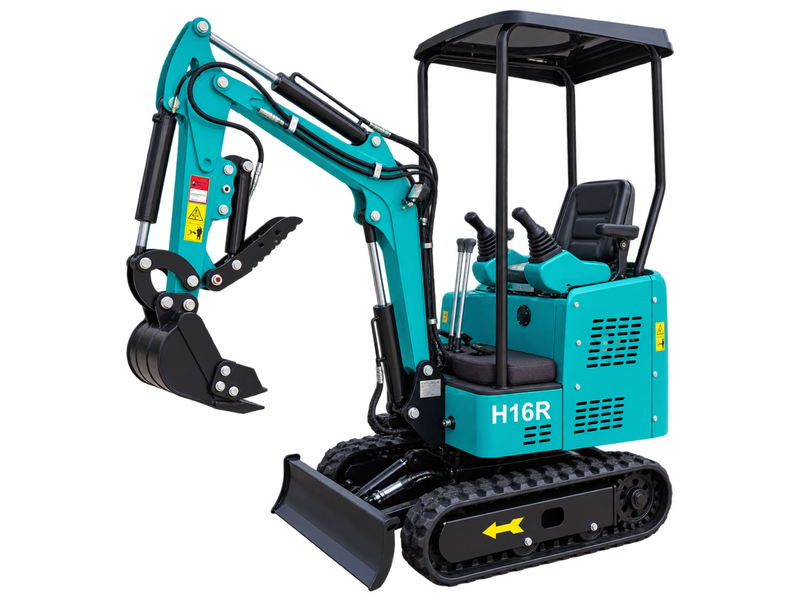

Both the KT13R and the H16R run a RATO 420cc gas engine and come with pilot joystick controls, an open canopy, front-plumbed auxiliary hydraulics, rubber tracks, a backfill blade and a thumb. Each also has a few features of its own:
- H16R: hydraulic thumb.
- KT13R: a work light, a rear engine access door and hydrostatic drive.
Which mini excavator should you choose?
Choose the CFG KT13R for the lightest haul, the AGT H16R for the heaviest, 1.5-ton class machine, or the AGT H13R for a middle weight with a 68.9-inch dig depth.
- Lightest to haul: the KT13R, about 110 pounds lighter than the H13R.
- Heaviest, 1.5-ton class: the H16R, about 400 pounds heavier than the H13R.
- In between: the AGT H13R at 1,896 pounds, with a 475-pound lift capacity.
The KT13R and H16R both come with a thumb. To compare more models, see our mini excavators page.
