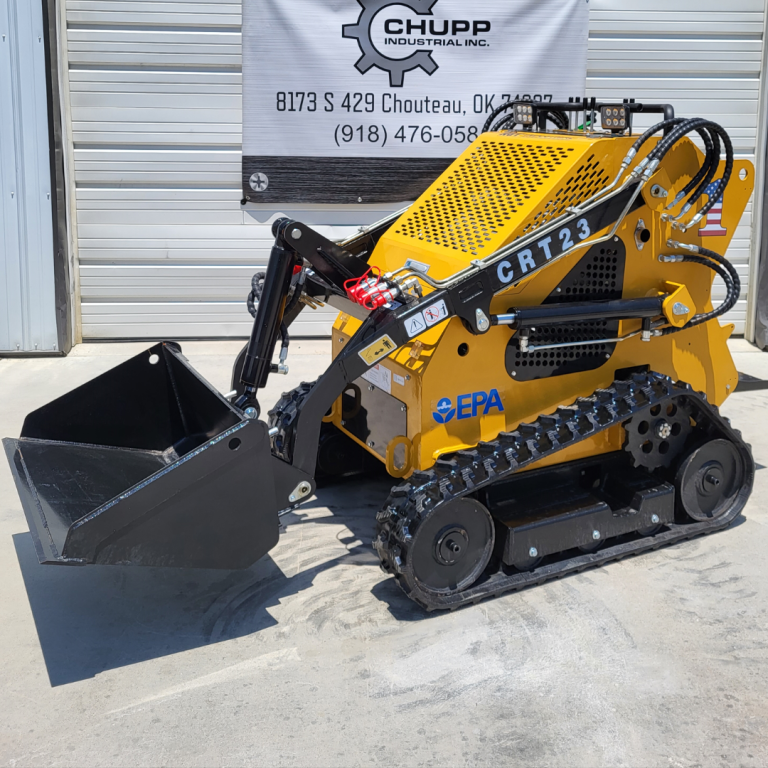

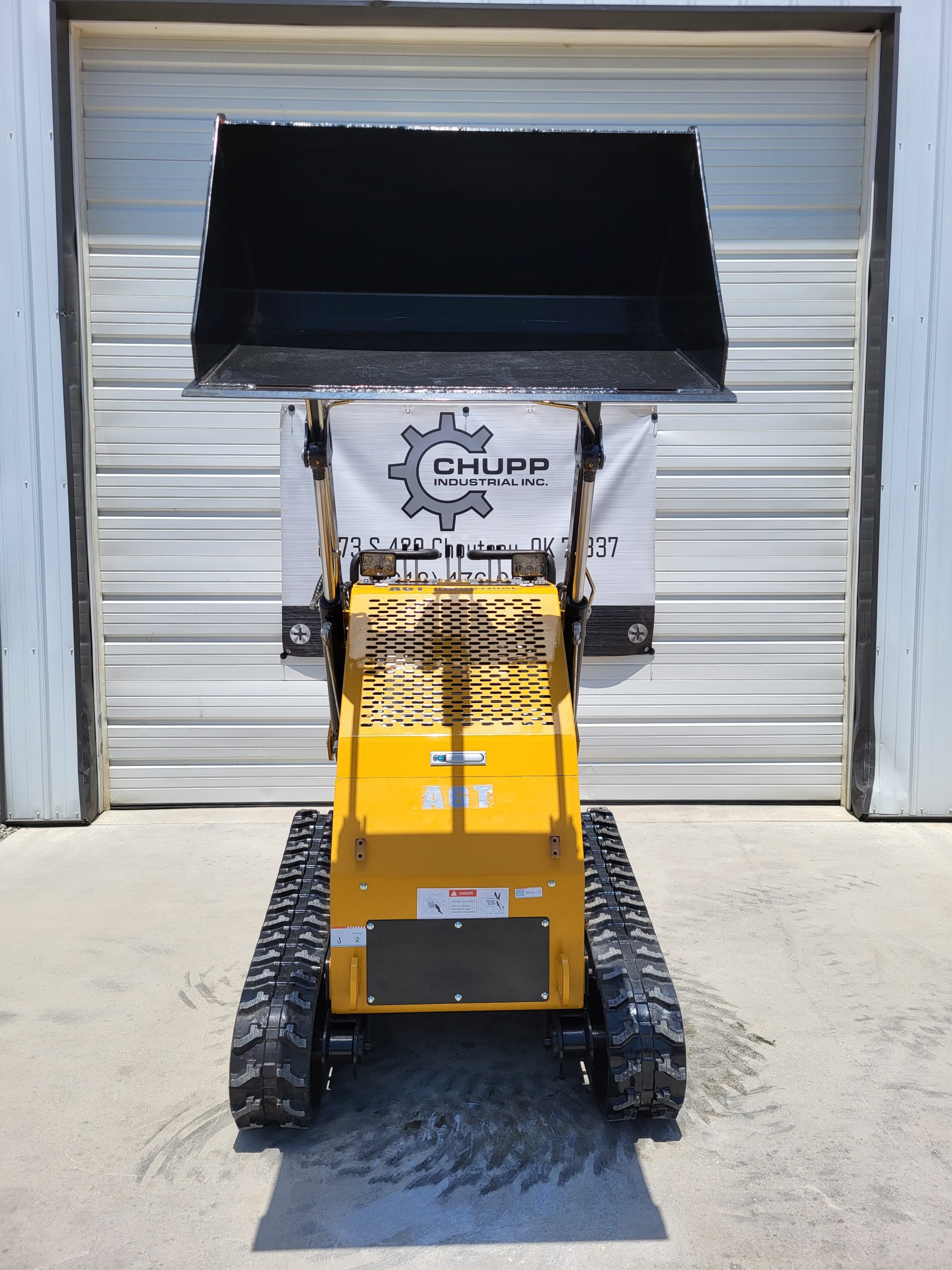

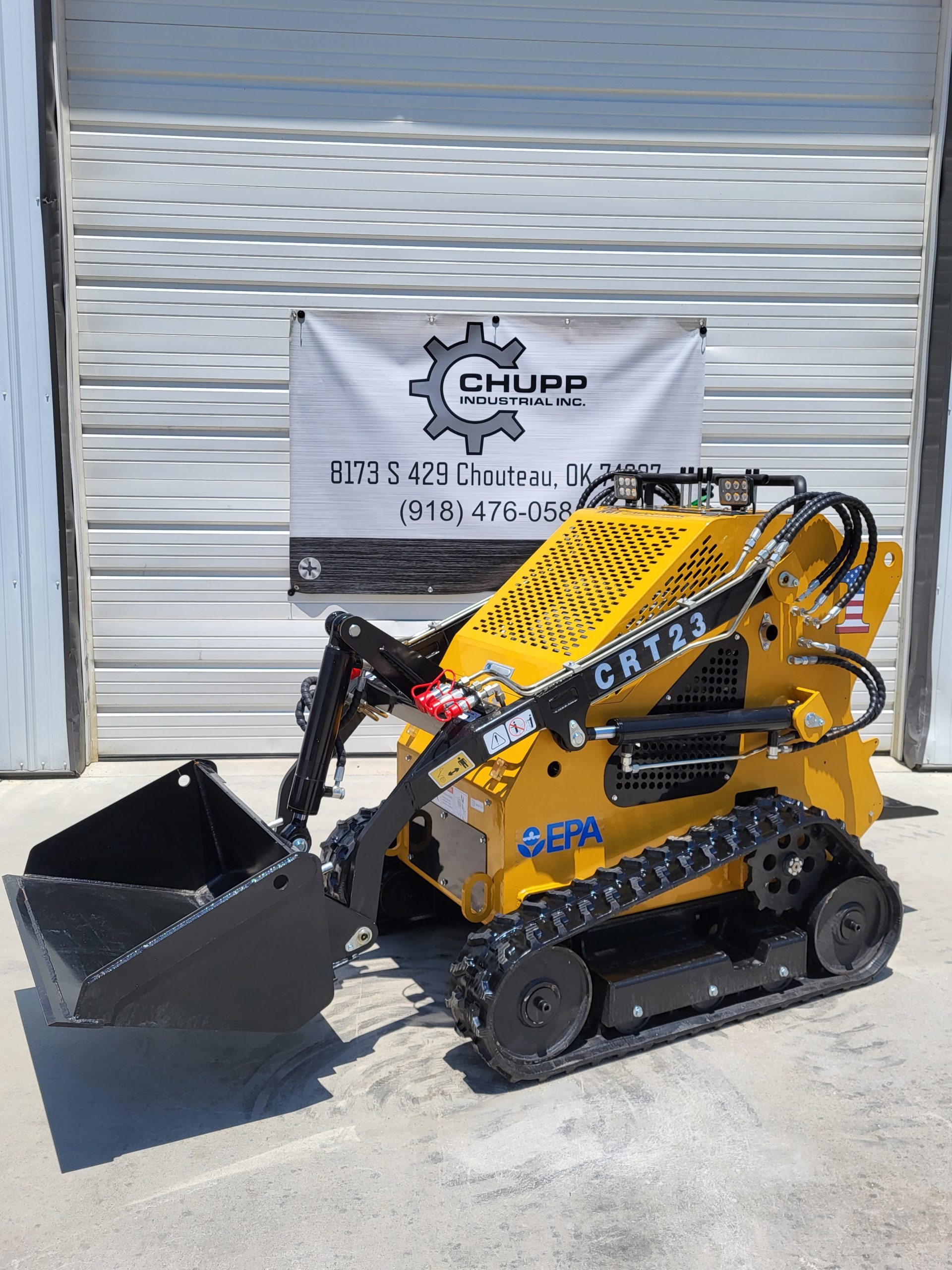

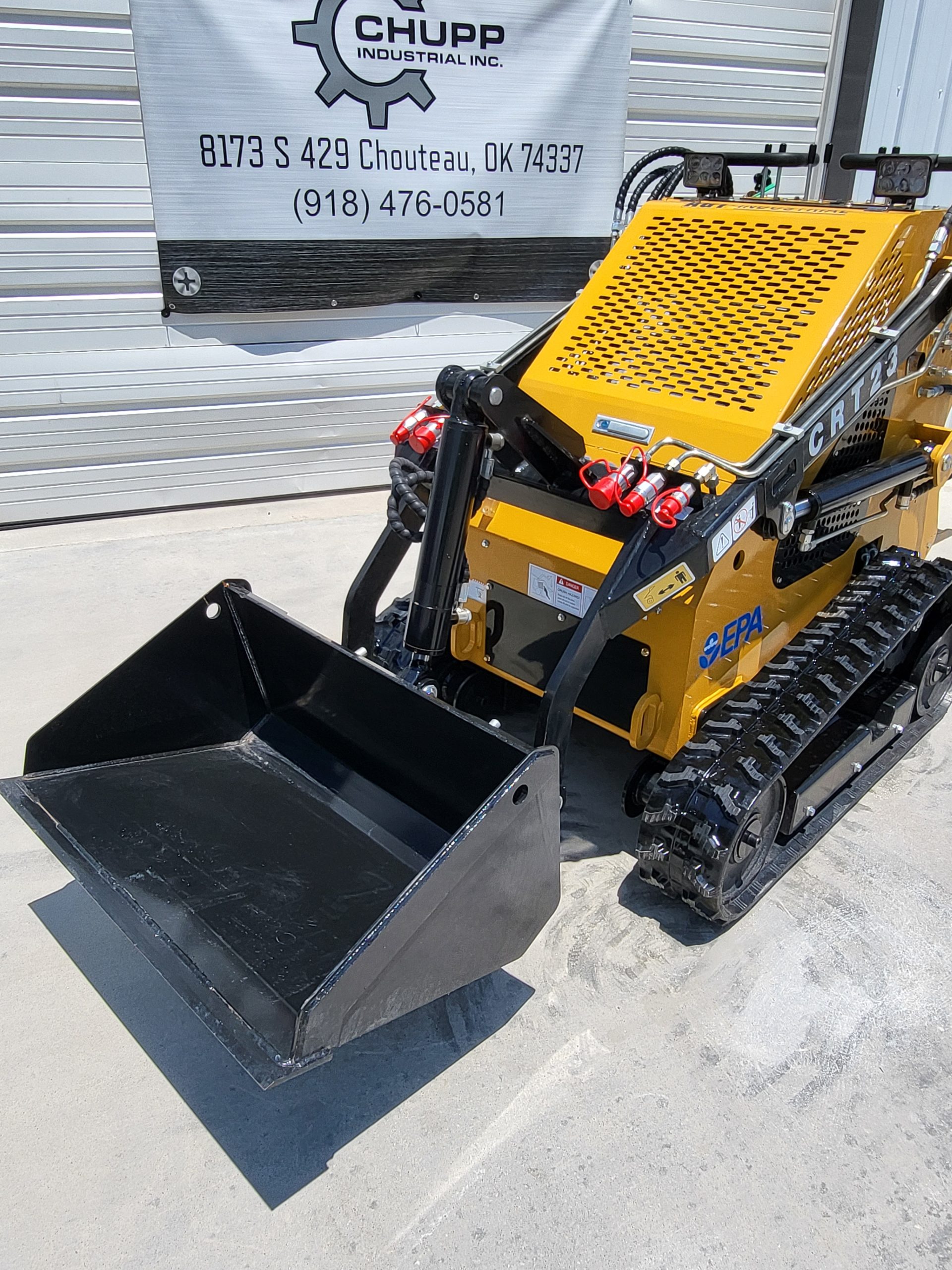

AGT CRT23 Mini Skid Steer
This mini skid steer is powered by a RATO 23HP gasoline engine, commonly used in outdoor power equipment by brands like Poulan and Harbor Freight. It is compatible with Toro Dingo mini skid steer attachments, and we offer grapples, pallet forks, augers, and brooms designed for this machine. The maximum lift capacity is 1000 lbs, tested with a 200 lb operator (we recommend avoiding full height with full weight). The machine features three hydraulic pumps, a 40.75″ width, 96″ length with bucket down, and a height of 54″. It has a 2002 lb operating weight, a travel speed of up to 3.73 mph, and can climb up to a 30° angle. The engine provides 17.1KW (23HP) power, with a fuel consumption rate of 6.7 L/h.
$6,499.99
Video Coming Soon

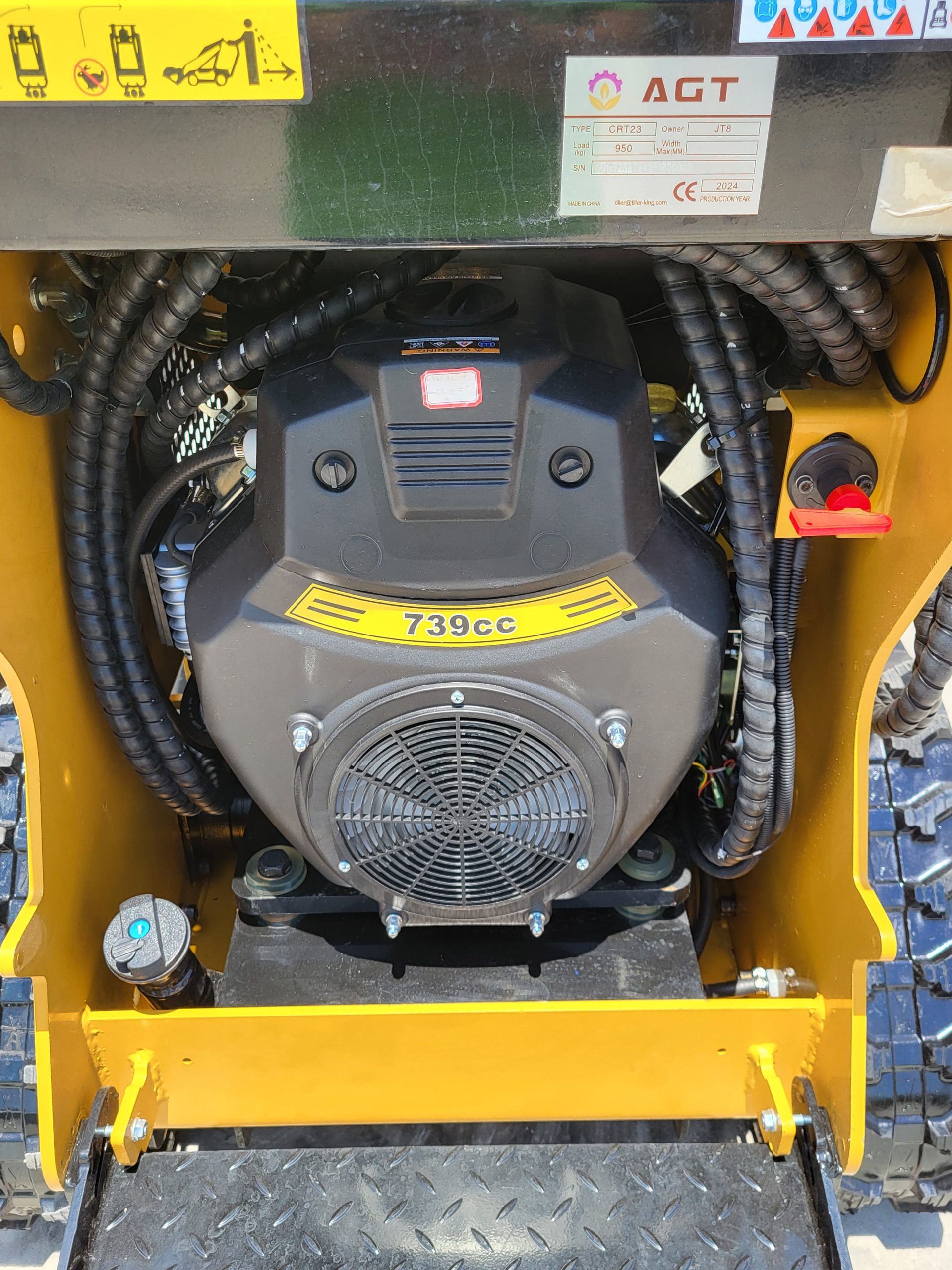

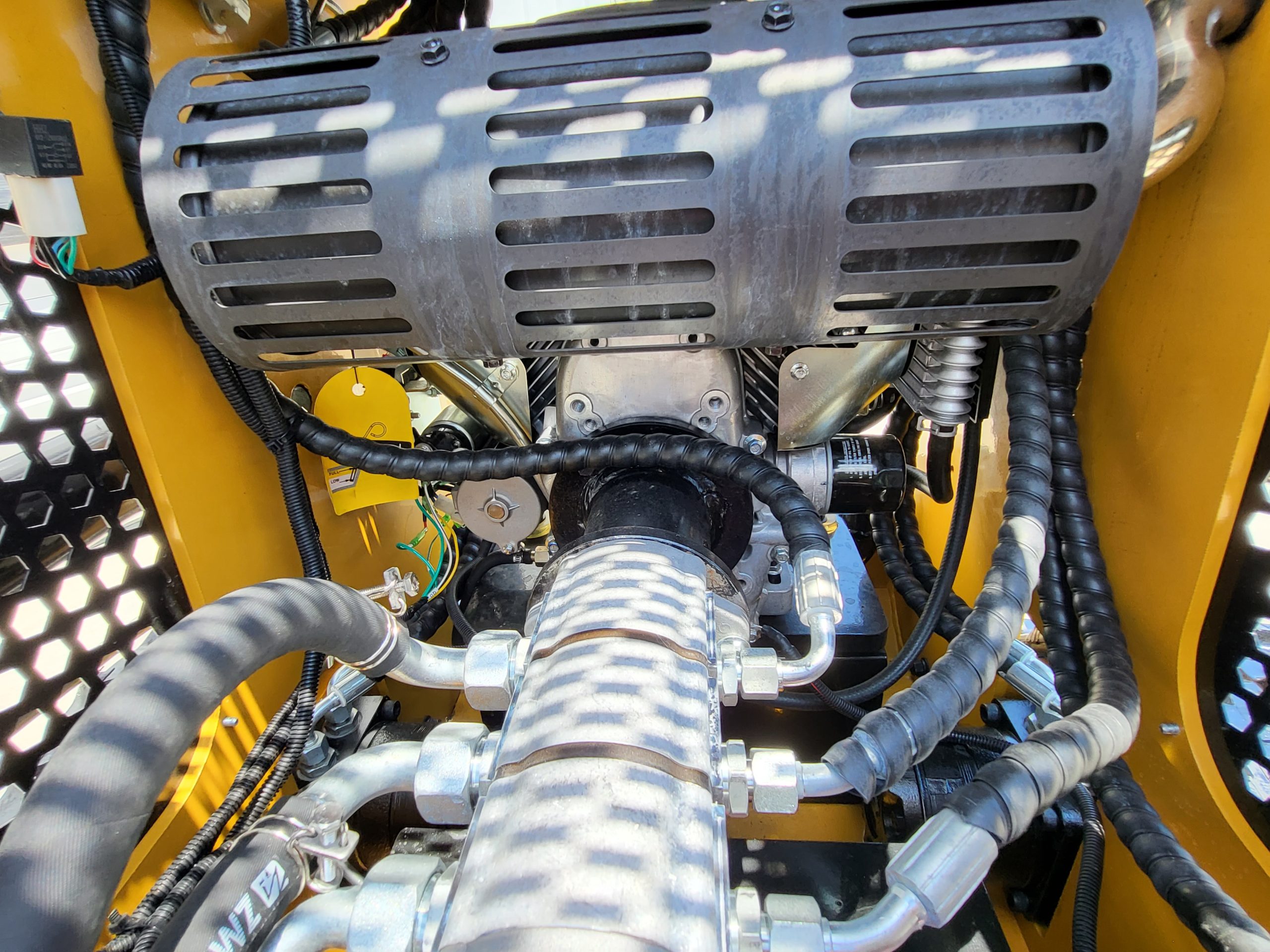

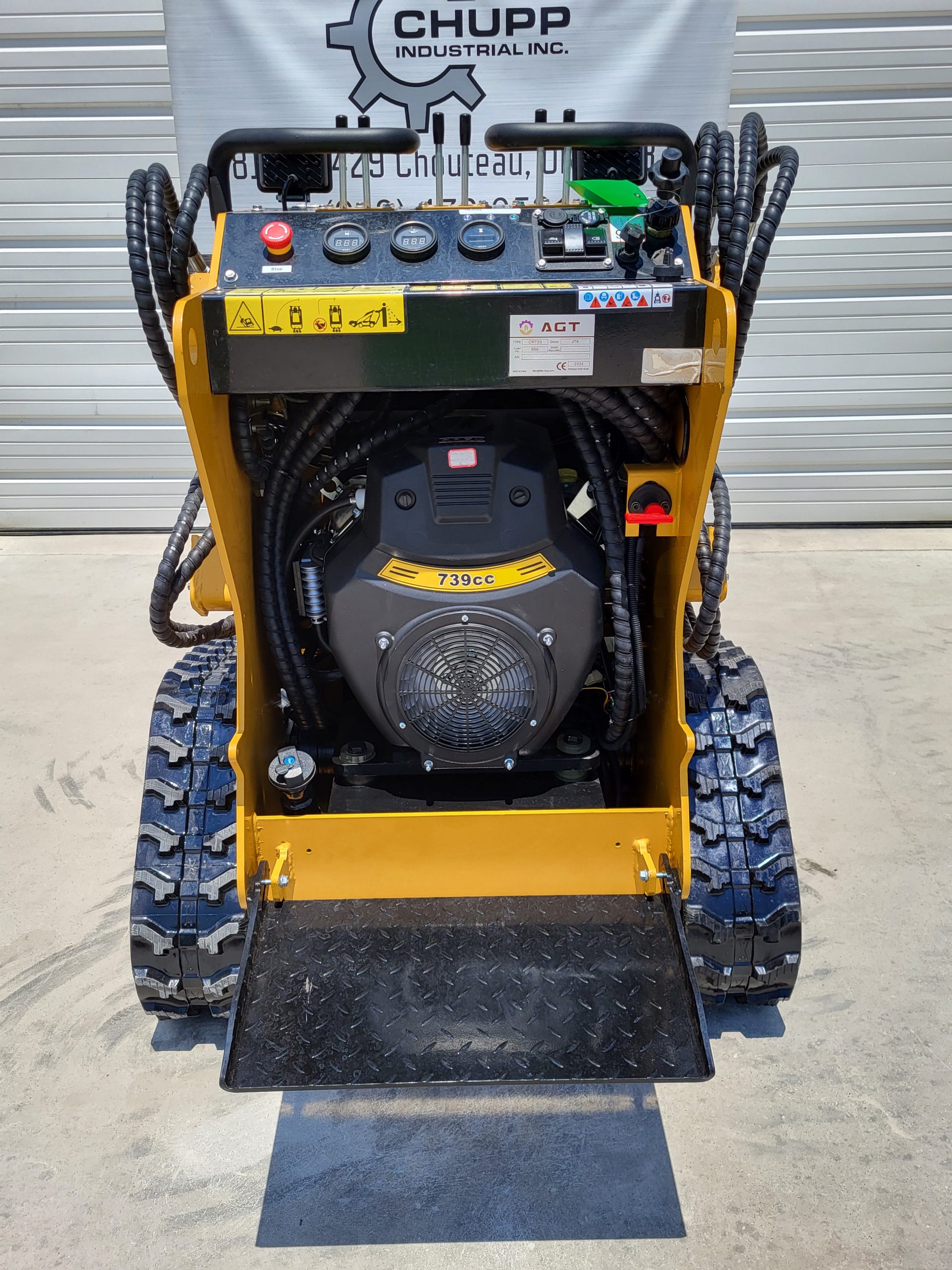

Engine
- R740 Engine
- Type: Gasoline, V-Double Cylinder
- Output Power: 17.1KW(23HP)/3600rpm
- Fuel Consumption: 6.7 L/h
- Starting Mode: Electric Start
Technical Specifications

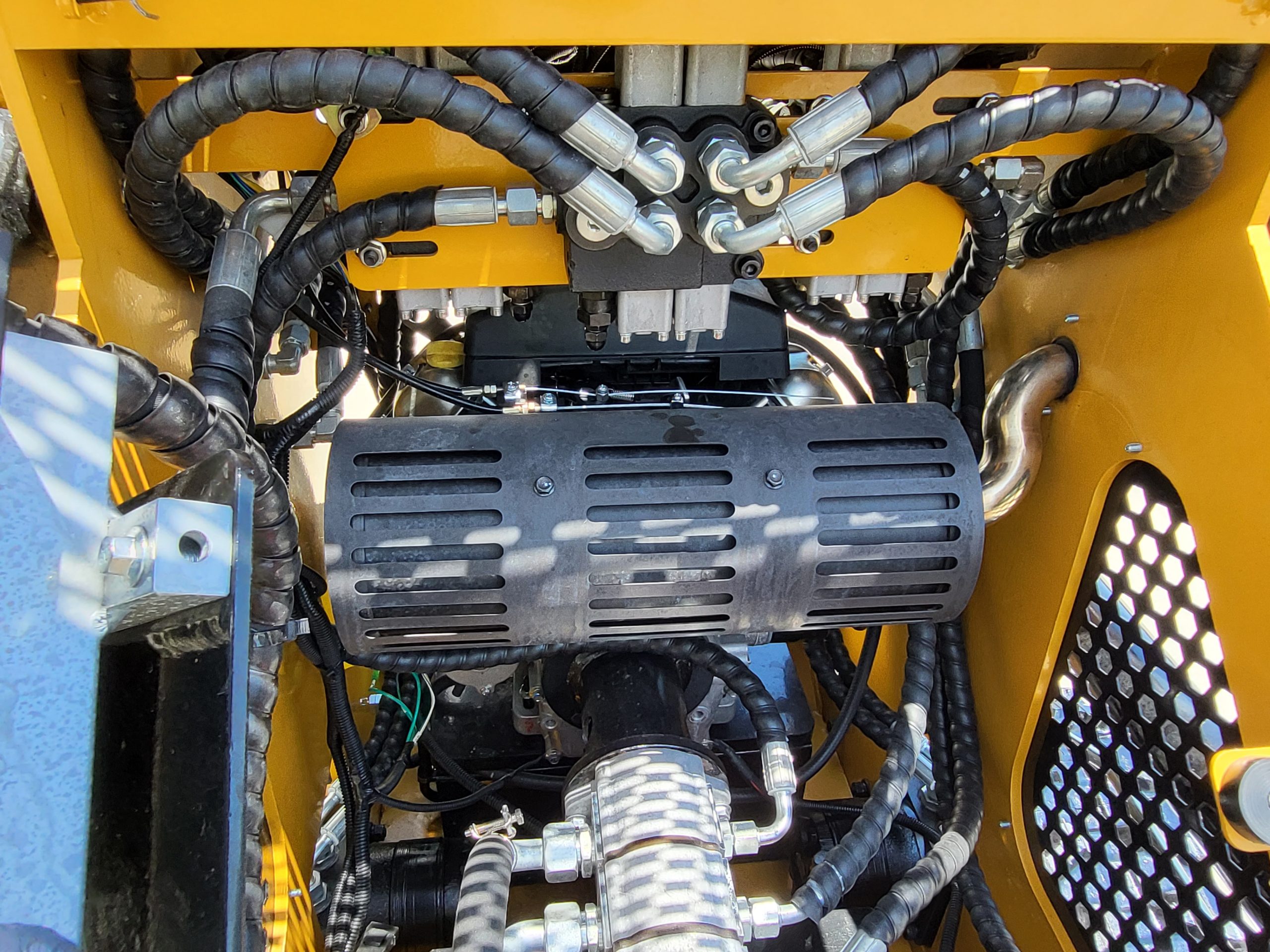

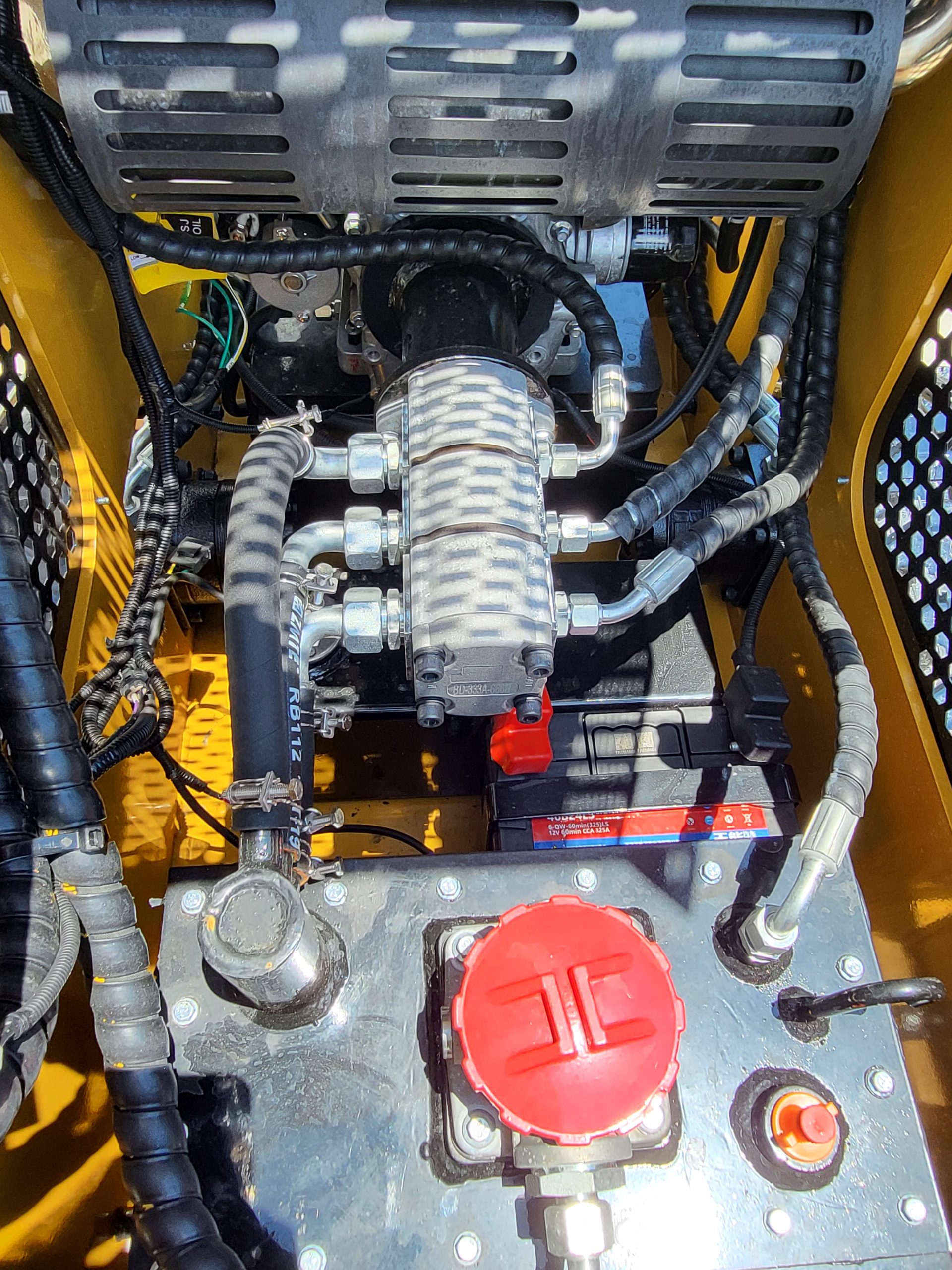

- Hydraulic Pumps: 3
- Overall Machine Width: 40.75″
- Overall Machine Length with Bucket and Stand-on Platform Down: 96″
- Overall Machine Length with Bucket and Stand-On Platform up: 85″
- Machine Height: 54″
- Track Width: 7″
- Bucket Width: 32.5″
- Machine Operating Weight: 2002 lbs.
- Traveling Speed: 0-3.73 mph
- Rated Pressure: 2465 psi
- Lifting Time: 4.3 s
- Descent Time: 3.3 s
- Tipping Time: 1.5 s
- Maximum Angle of the Climb: 30°
Landscaping – The CRT23 is ideal for tasks like grading, trenching, digging, and moving materials such as soil, mulch, gravel, and sand. It excels in small to medium-sized landscaping projects, where space is limited.
Construction and Demolition – This mini skid steer is useful for light construction tasks like digging foundations, moving building materials, and clearing debris. It can handle small demolition projects like removing concrete or breaking up hard-packed soil.
Utility Installation – The CRT23 is great for digging trenches for utilities like plumbing, wiring, and irrigation systems, especially in narrow spaces where larger equipment can’t fit.
Material Handling – With its 36-inch wide bucket and lifting capacities of up to 1008 lbs, this skid steer is excellent for moving bulk materials such as dirt, gravel, compost, and construction debris.
Agricultural Use – It’s a helpful tool for small farm tasks, such as moving feed, clearing fields, or transporting materials like hay and manure.
Snow Removal – The CRT23 can be equipped with a snowplow or broom for clearing snow from driveways, parking lots, and other areas.
AND MORE!
The CRT23 mini skid steer features a reliable RATO 23HP gasoline engine and is compatible with Toro Dingo attachments. With a 1000 lb lift capacity, 2002 lb operating weight, and a travel speed of up to 3.73 mph, it offers excellent performance for tough jobs. Its versatility, durability, and wide attachment compatibility make it a smart investment for any operation.
Free local pick up at our location:
8173 South 429 Chouteau, OK
Free shipping within 100 Miles of Chouteau, OK
We ship NATIONWIDE! Contact us for a complete quote with shipping and any applicable taxes!
All mini equipment will be sold with a 1 year limited parts warranty.
Our limited 1 year parts warranty covers:
- Replacement cost of the hydraulic pump
- Hydraulic drive motors
- Hydraulic swing motor
We have parts available to repair the engine as well, but it is not included in the 1 year warranty as we are not able to oversee the maintenance of the engine.
We also have replacement hydraulic cylinders available for the boom, bucket and front blade. Our warranty does not cover any necessary labor to diagnose or replace these parts, only the cost of the parts. We can perform any necessary repairs at our location or we can ship any necessary parts for repair as well. Most parts can be replaced in minimal time and our in-house technician can guide you through the repair process. WE sell a wide variety of construction equipment and have a dedicated full-time mechanic that can assist in offering customer support after your purchase.
We offer replacement parts for everything we sell. We keep most of our parts in stock and immediately available. Otherwise, we are able to source the necessary parts to repair your machine. We do our best to keep replacement tracks, drive motors, pumps, hydraulic cylinders, hydraulic hoses, engine components & other common parts in stock.
