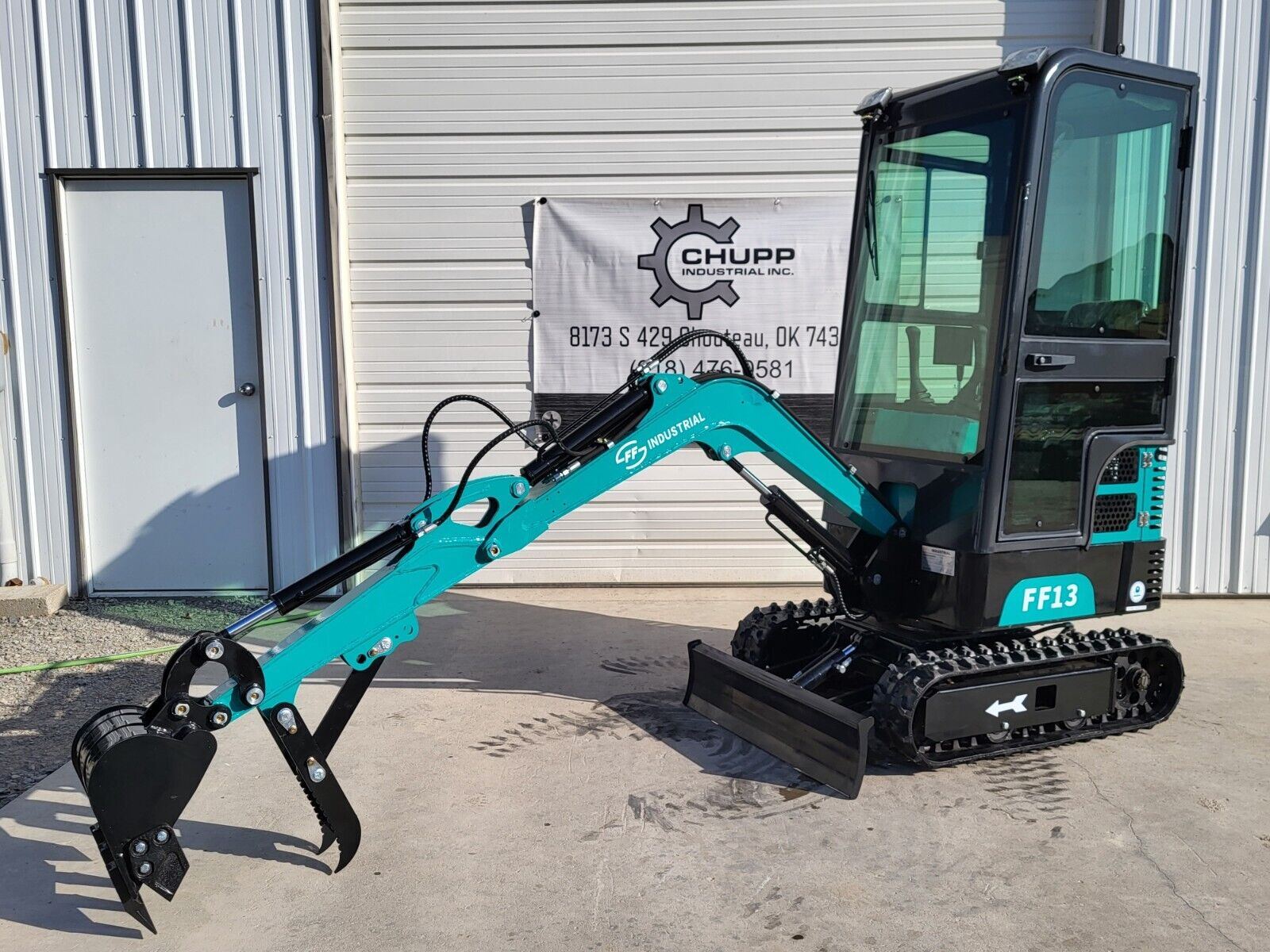

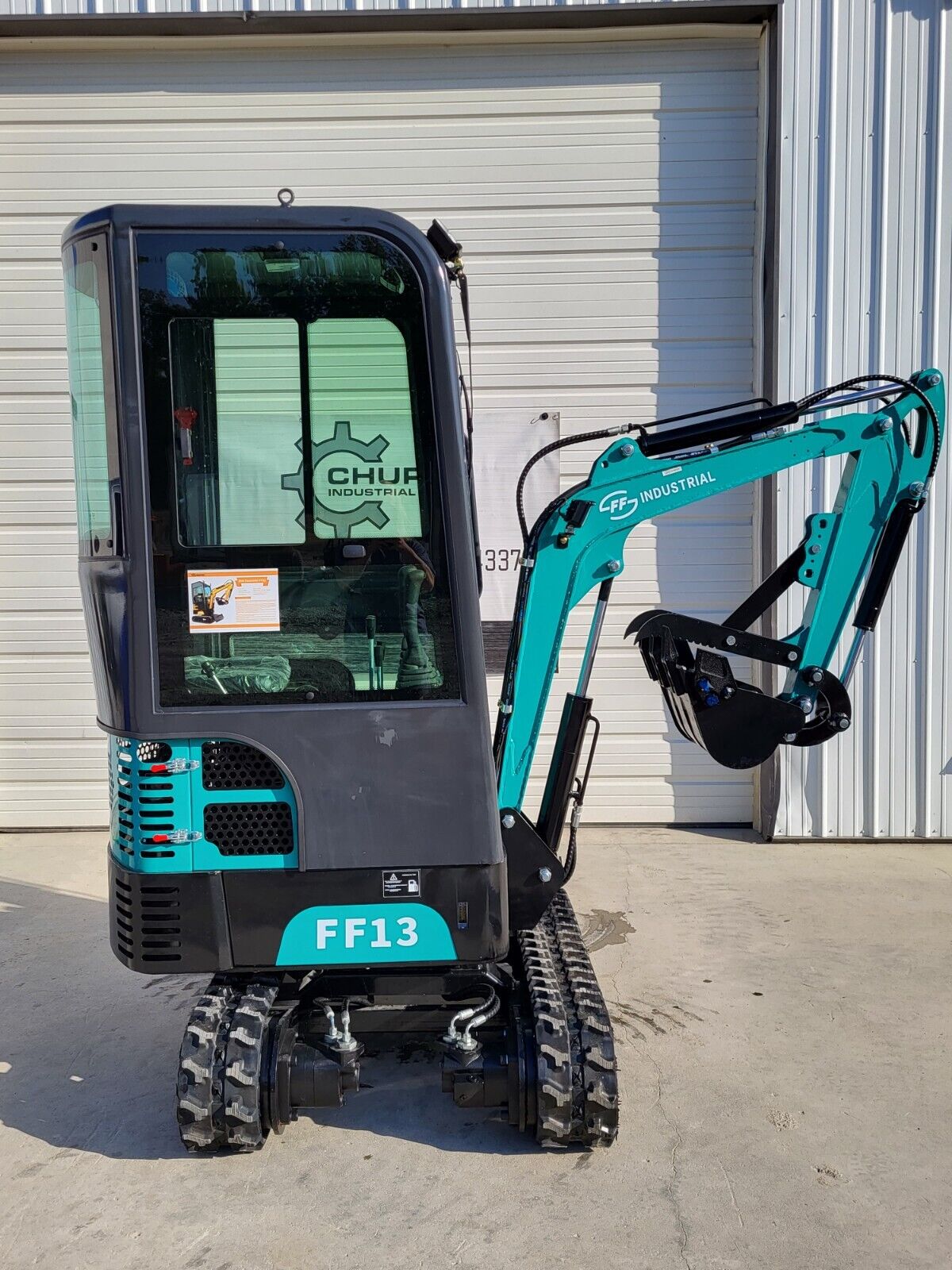

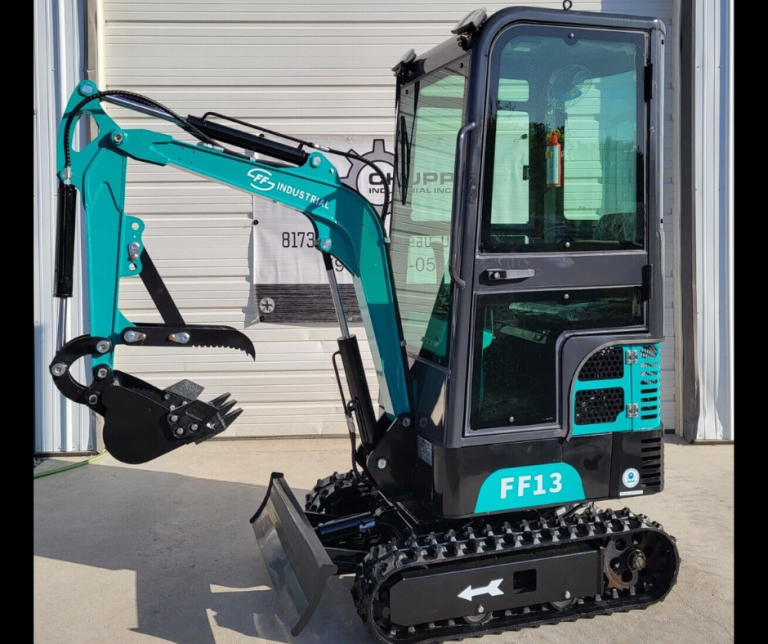

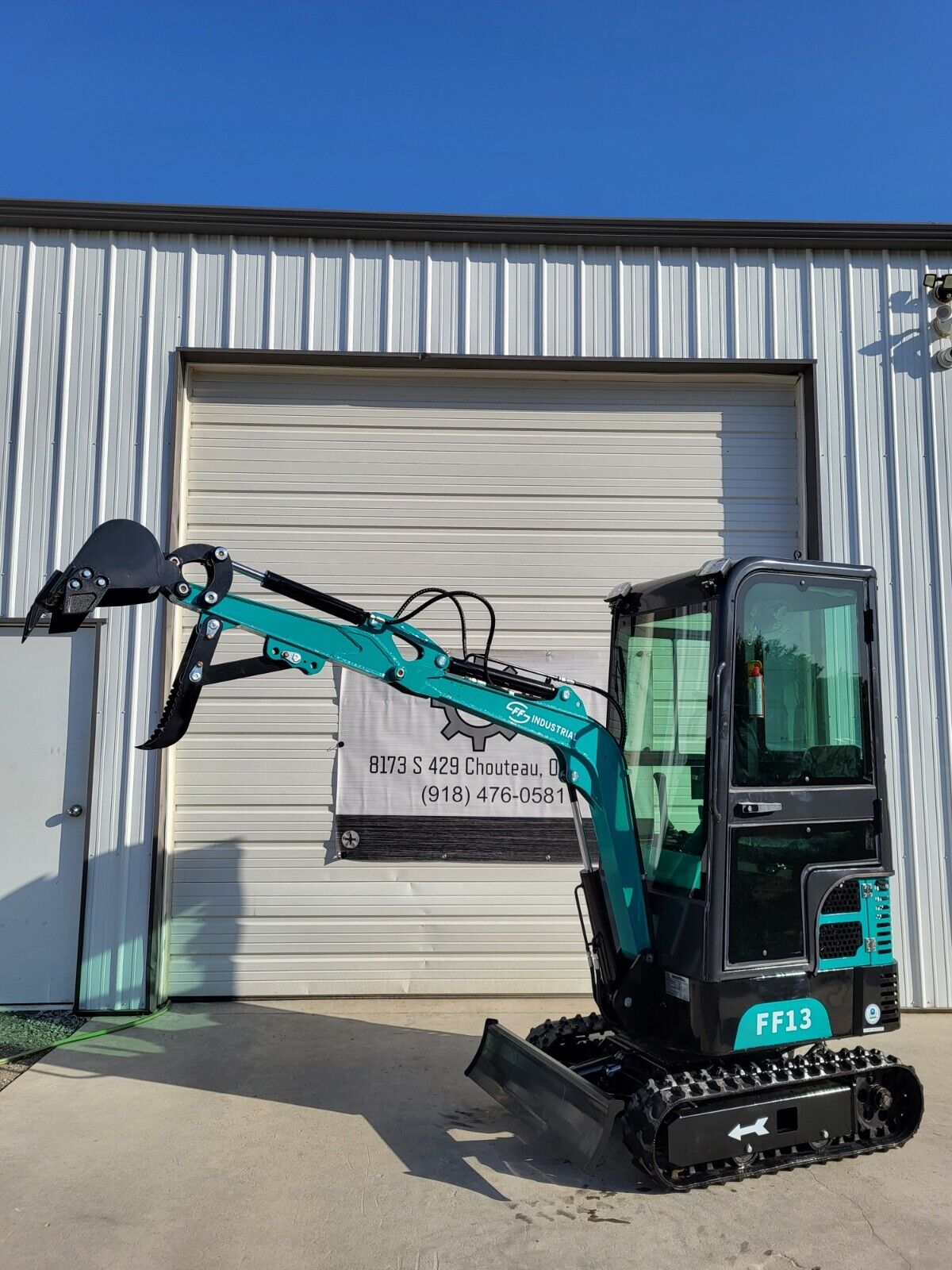

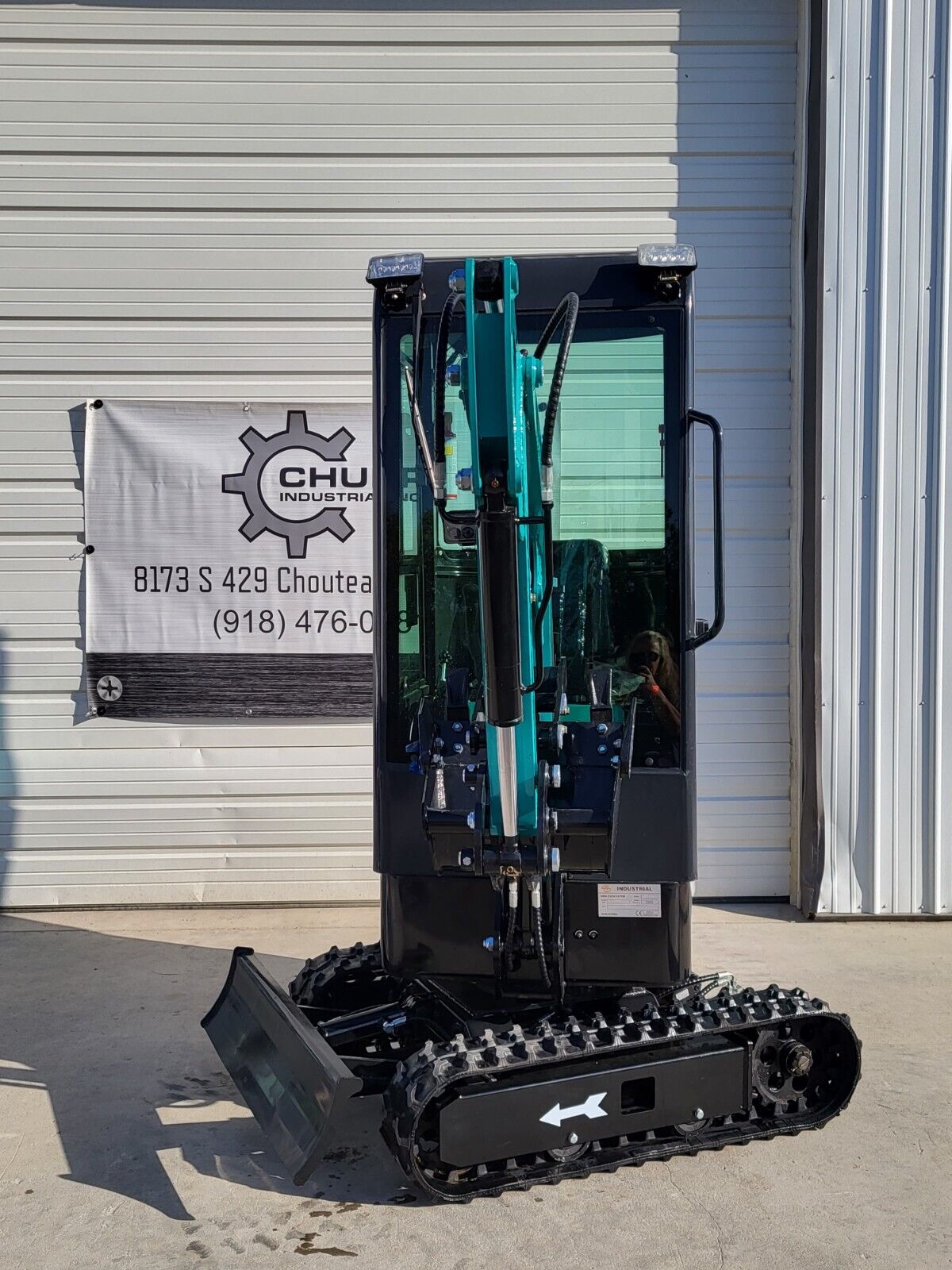

FF13 1 Ton Mini Excavator

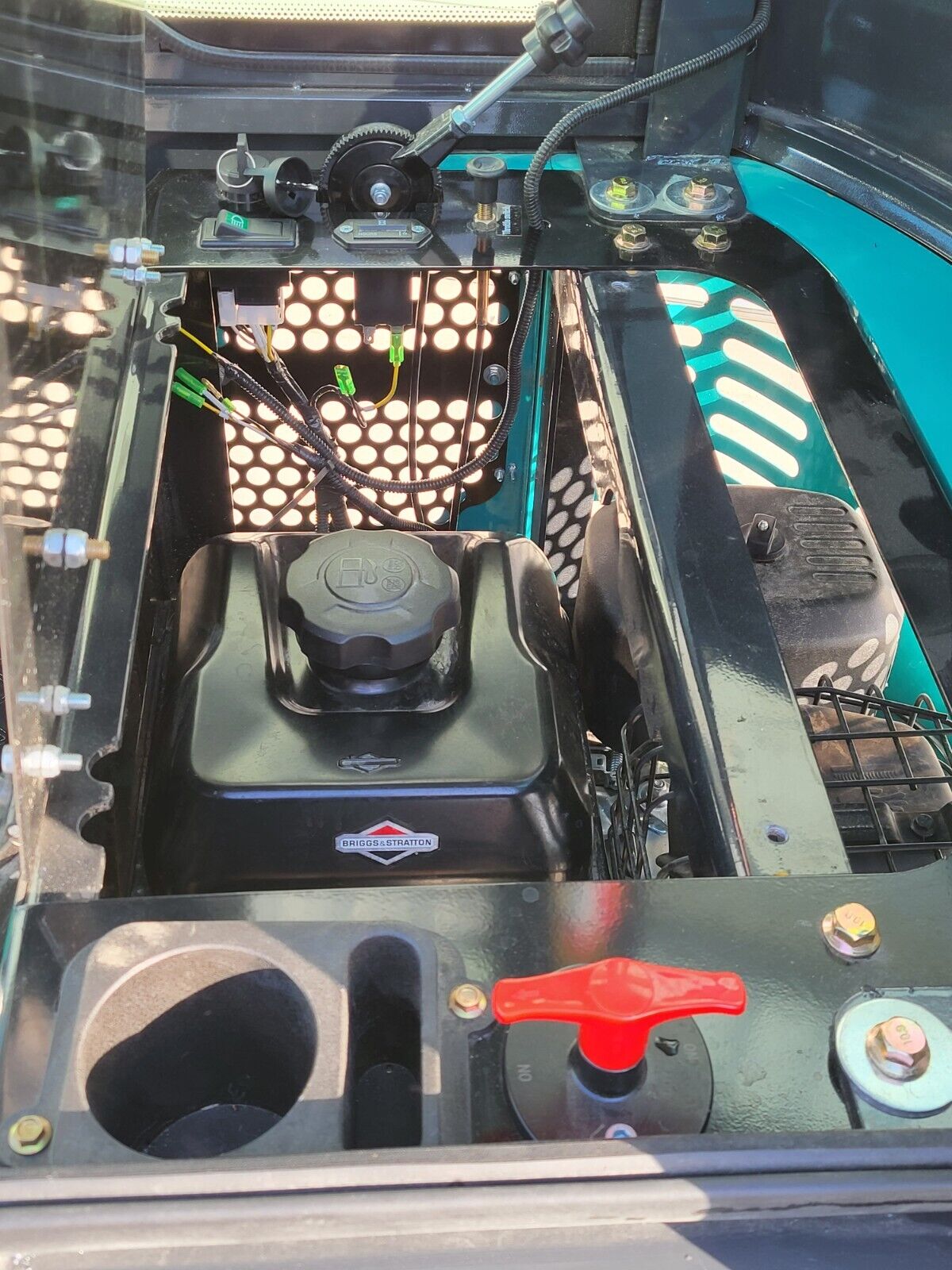

The FF13 FF Industrial 1-Ton Mini Excavator is powered by a 13.5 HP Briggs & Stratton gasoline engine and features a compact design with a cab for operator comfort. It boasts a maximum digging depth of 68.9 inches (1760 mm) and a maximum digging radius of 120.1 inches (3050 mm), making it ideal for tight spaces and small-scale projects. With a rated power of 13.5 hp and a lift capacity of 475 lbs, this mini excavator is built for versatility, offering a bucket capacity of 0.03 cubic yards and a maximum bucket digging force of 2023 lbf (9 kN). It has a 1.7-gallon fuel tank, 3.96-gallon hydraulic tank, and an overall height of 7.1 ft. (2160 mm), providing great performance for landscaping, trenching, digging foundations, and small demolition tasks. Its durable steel and rubber construction, combined with a 30° max slope grade and 16.2-inch platform ground clearance, ensures stability and efficiency across a range of applications.
$4,999.99
Video Coming Soon
Material: Steel, Rubber
Rated Torque: 21 lb.-ft. @ 3060 rpm
Rated Power: 13.5 hp/3600 hp/rpm
Fuel Tank Volume: 1.7 gal. (6.6 L)
Hydraulic Tank Volume: 3.96 gal. (15 L)
Overall Track Length: 48.5 in. (1230 mm)
Platform Ground Clearance: 16.2 in. (410 mm)
Bucket Capacity: .03 cubic yards
Bucket Width: 15.7 in. (400 mm)
Max. Bucket Digging Force: 2023 lbf (9 KN)
Overall Height: 7.1 ft. (2160 mm)
Max. Digging Depth: 68.9 in. (1760 mm)
Max. Dumping Height: 62.6 in. (1590 mm)
Max. Digging Radius: 120.1 in. (3050 mm)
Dozer Height: 12.6 in. (320 mm)
Dozer Depth: 7.8 in. (200 mm)
Max. Slope Grade: 30°
Net Weight: 1896 lb. (860 kg)
Lift Capacity: 475 lbs.
Digging Trenches
For installing underground utilities (water, gas, electrical lines, etc.)
- Digging drainage ditches or swales
Landscaping
- Grading and leveling soil
- Planting trees, shrubs, or bushes
- Excavating for garden beds or flower boxes
Utility Installation
- Digging for underground plumbing or irrigation systems
- Installing septic systems or French drains
Breaking Concrete & Hard Surfaces
- Using a jackhammer attachment to break up concrete, asphalt, or rock
Site Preparation
- Clearing brush, rocks, and debris
- Preparing land for construction or other projects
AND MORE!
The FF13 Mini Excavator excels in applications where space is limited, and its variety of attachments allows it to tackle a wide range of tasks efficiently. Whether for construction, landscaping, or utility installation, this mini excavator is a versatile asset for any small to medium-scale project.
Free local pick up at our location:
8173 South 429 Chouteau, OK
Free shipping within 100 Miles of Chouteau, OK
We ship NATIONWIDE! Contact us for a complete quote with shipping and any applicable taxes!
All mini equipment will be sold with a 1 year limited parts warranty.
Our limited 1 year parts warranty covers:
- Replacement cost of the hydraulic pump
- Hydraulic drive motors
- Hydraulic swing motor
We have parts available to repair the engine as well, but it is not included in the 1 year warranty as we are not able to oversee the maintenance of the engine.
We also have replacement hydraulic cylinders available for the boom, bucket and front blade. Our warranty does not cover any necessary labor to diagnose or replace these parts, only the cost of the parts. We can perform any necessary repairs at our location or we can ship any necessary parts for repair as well. Most parts can be replaced in minimal time and our in-house technician can guide you through the repair process. WE sell a wide variety of construction equipment and have a dedicated full-time mechanic that can assist in offering customer support after your purchase.
We offer replacement parts for everything we sell. We keep most of our parts in stock and immediately available. Otherwise, we are able to source the necessary parts to repair your machine. We do our best to keep replacement tracks, drive motors, pumps, hydraulic cylinders, hydraulic hoses, engine components & other common parts in stock.
