1.4 Ton Gas Mini Excavator

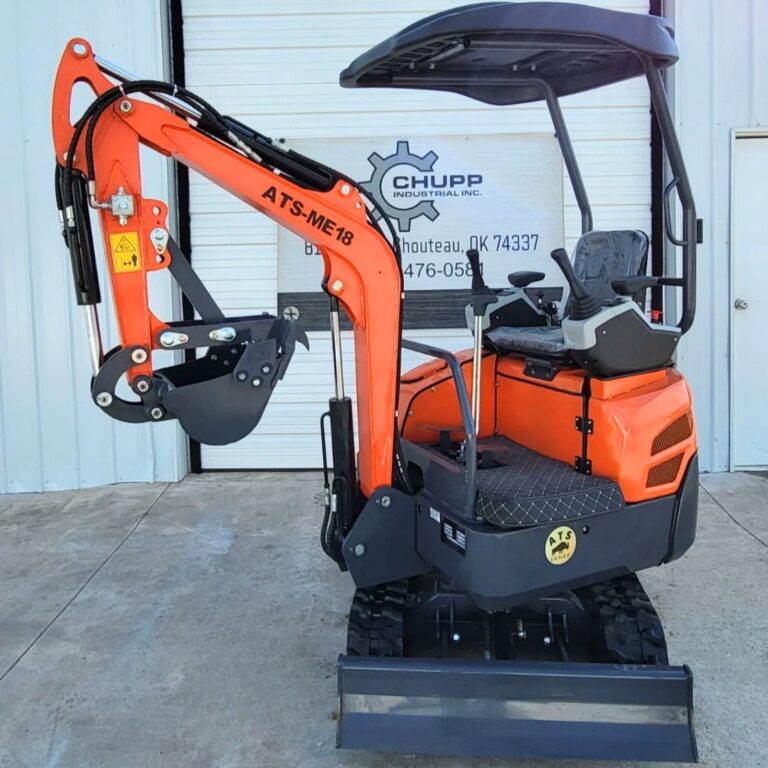

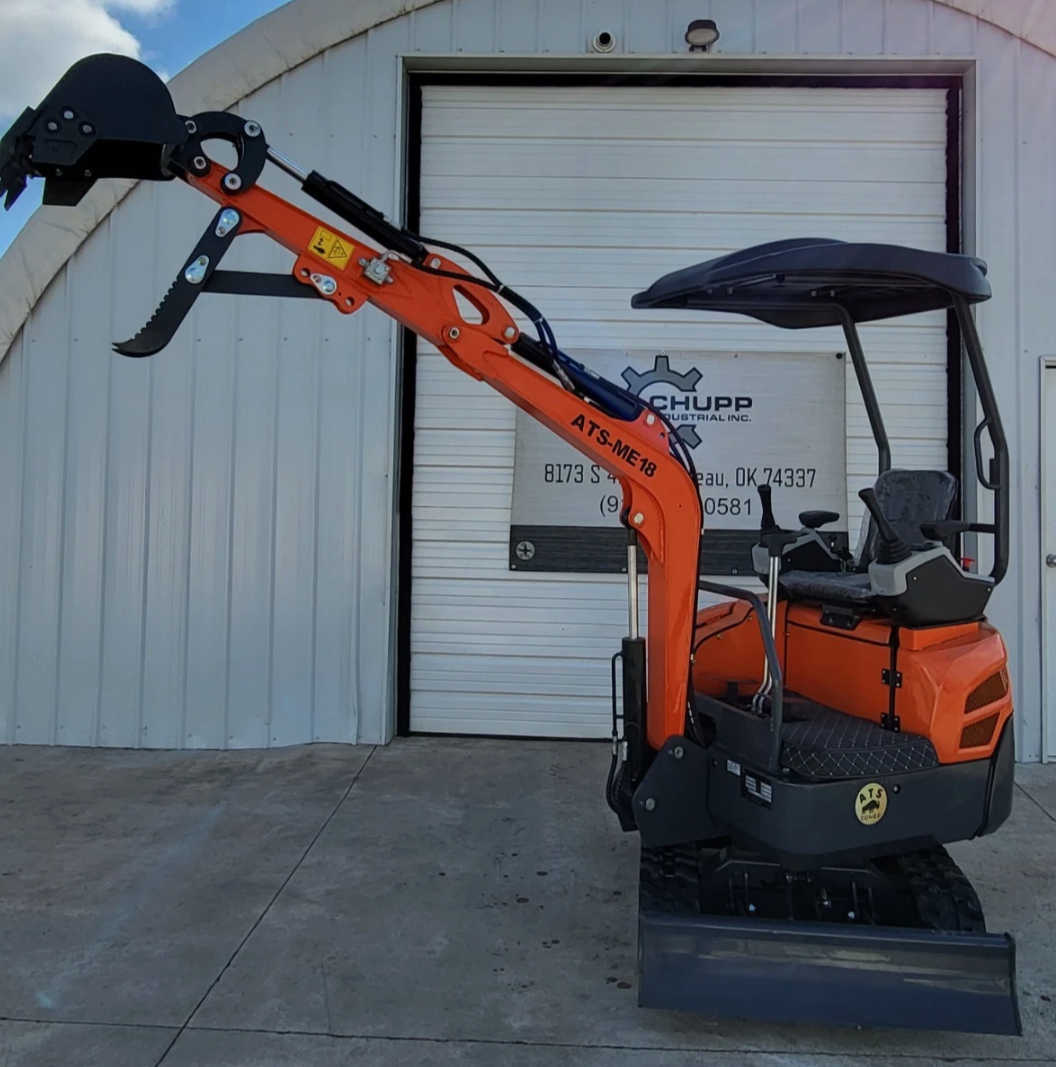

This ATS-ME18 mini excavator is a compact, efficient machine designed for residential, landscaping, and light excavation work. Its small footprint and narrow width allow access through tight spaces while still offering solid digging performance.
Powered by a RATO 420 gasoline engine (13.5 HP), this unit delivers smooth operation with low fuel consumption. It features pilot controls for precise handling, auxiliary hydraulics for running attachments such as augers or thumbs, and a front backfill/dozer blade for grading, leveling, and added stability during digging.
This machine is well-suited for homeowners, landscapers, and contractors looking for a cost-effective alternative to larger brand-name mini excavators.
$4,799.99
CLICK IMAGES TO ENLARGE
Key Specifications
- Working Weight (Complete Machine): 2,028.25 lbs

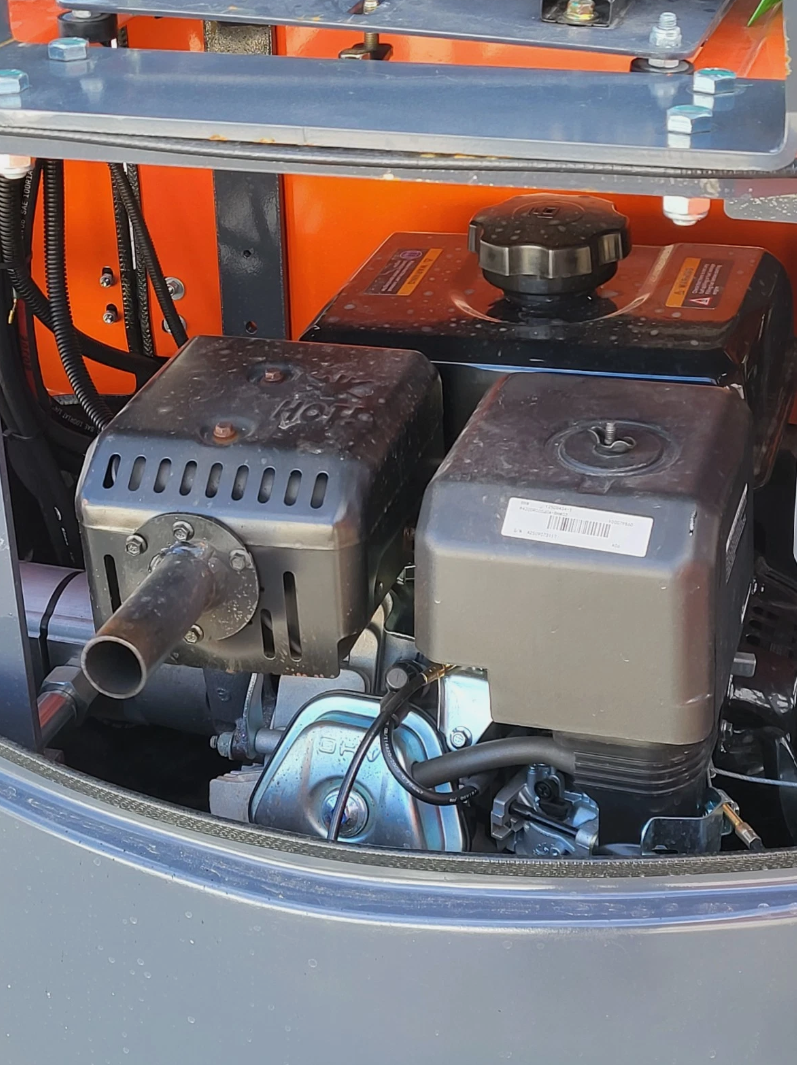

- Engine: RATO 420 Gasoline
- Maximum Power: 13.5 HP
- Bucket Capacity: 1.06 ft³
- Walking Speed (Low/High): 0 – 1.12 mph
- Climbing Ability: 15%
- Bulldozer / Backfill Blade Width: 35.71 in
- Bulldozer / Backfill Blade Height: 7.87 in
Digging & Performance Specs
- Maximum Excavation Height (A): 100.79 in
- Maximum Unloading Height (B): 70.87 in
- Maximum Excavation Depth (C): 66.65 in (5.55 ft)
- Maximum Excavation Radius (E): 120.47 in
Hydraulics
- Rated Pressure of Main Pump: 3,625.94 PSI
- Maximum Flow of Main Pump: 5.71 gal/min
- Control Valve: 4 Mechanical + 4 Hydraulically Controlled
- Auxiliary Hydraulic Lines: Yes (attachment ready)
Features

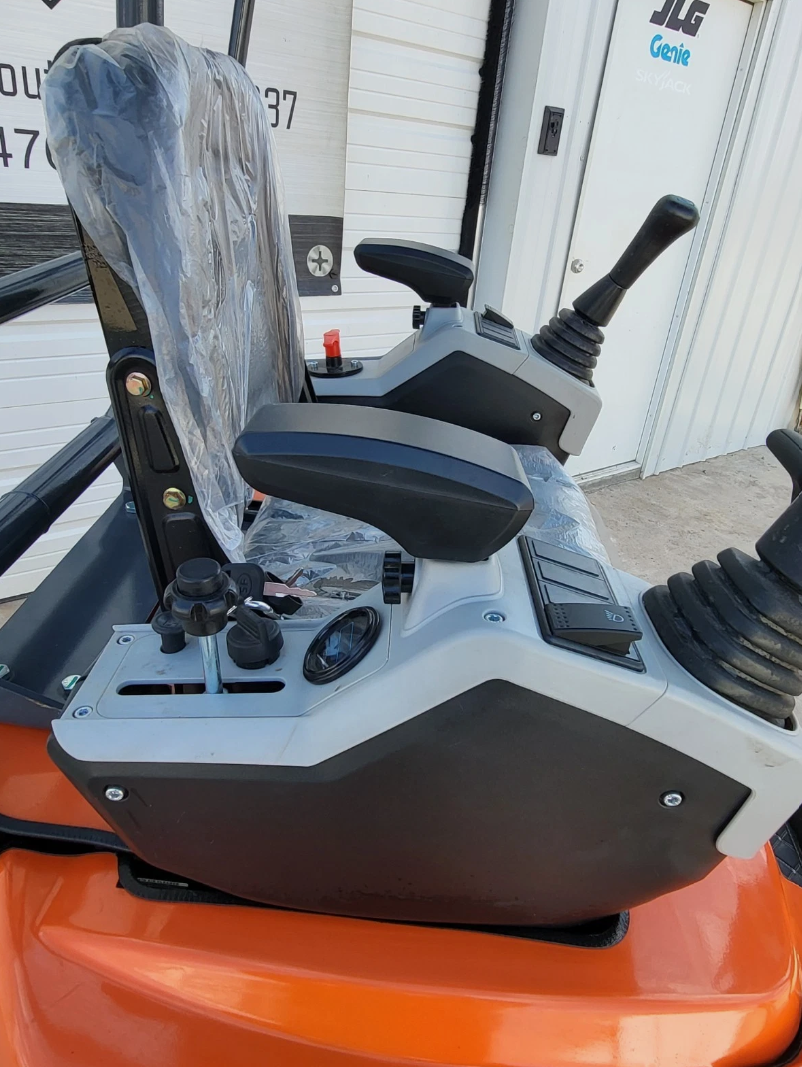

- Pilot controls for smooth, precise operation

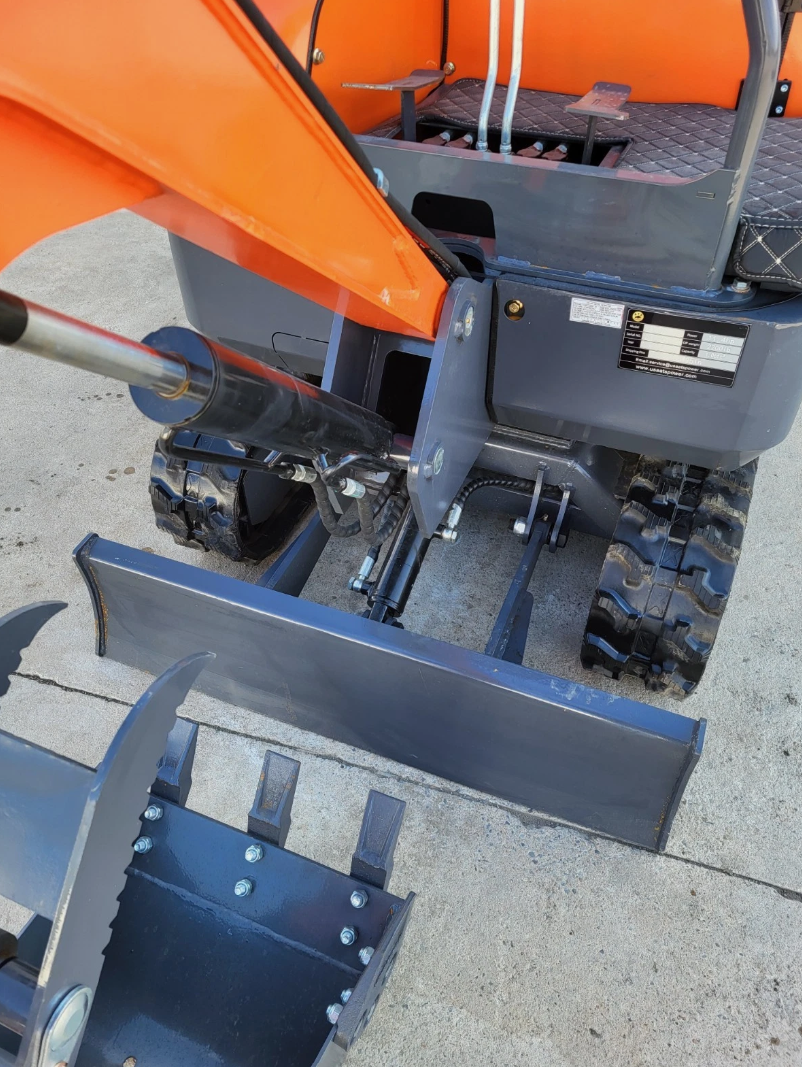

- Front backfill / dozer blade for grading, leveling, and stability
- Auxiliary hydraulics for attachments (augers, thumbs, etc.)
- Compact design ideal for residential and tight-access job sites
- Fuel-efficient gasoline engine
- Low operating and maintenance costs
Video Coming Soon
Digging Trenches
- For installing underground utilities (water, gas, electrical lines, etc.)
- Digging drainage ditches or swales
Landscaping
- Grading and leveling soil
- Planting trees, shrubs, or bushes
- Excavating for garden beds or flower boxes
Utility Installation
- Digging for underground plumbing or irrigation systems
- Installing septic systems or French drains
Site Preparation
- Clearing brush, rocks, and debris
- Preparing land for construction or other projects
AND MORE!
The ME18 excels in applications where space is limited, and its variety of attachments allows it to tackle a wide range of tasks efficiently. Whether for construction, landscaping, or utility installation, this mini excavator is a versatile asset for any small to medium-scale project.
Free local pick up at our location:
8173 South 429 Chouteau, OK
Free shipping within 100 Miles of Chouteau, OK
We ship NATIONWIDE! Contact us for a complete quote with shipping and any applicable taxes!
All mini equipment will be sold with a 1 year limited parts warranty.
Our limited 1 year parts warranty covers:
- Replacement cost of the hydraulic pump
- Hydraulic drive motors
- Hydraulic swing motor
We have parts available to repair the engine as well, but it is not included in the 1 year warranty as we are not able to oversee the maintenance of the engine.
We also have replacement hydraulic cylinders available for the boom, bucket and front blade. Our warranty does not cover any necessary labor to diagnose or replace these parts, only the cost of the parts. We can perform any necessary repairs at our location or we can ship any necessary parts for repair as well. Most parts can be replaced in minimal time and our in-house technician can guide you through the repair process. WE sell a wide variety of construction equipment and have a dedicated full-time mechanic that can assist in offering customer support after your purchase.
We offer replacement parts for everything we sell. We keep most of our parts in stock and immediately available. Otherwise, we are able to source the necessary parts to repair your machine. We do our best to keep replacement tracks, drive motors, pumps, hydraulic cylinders, hydraulic hoses, engine components & other common parts in stock.
