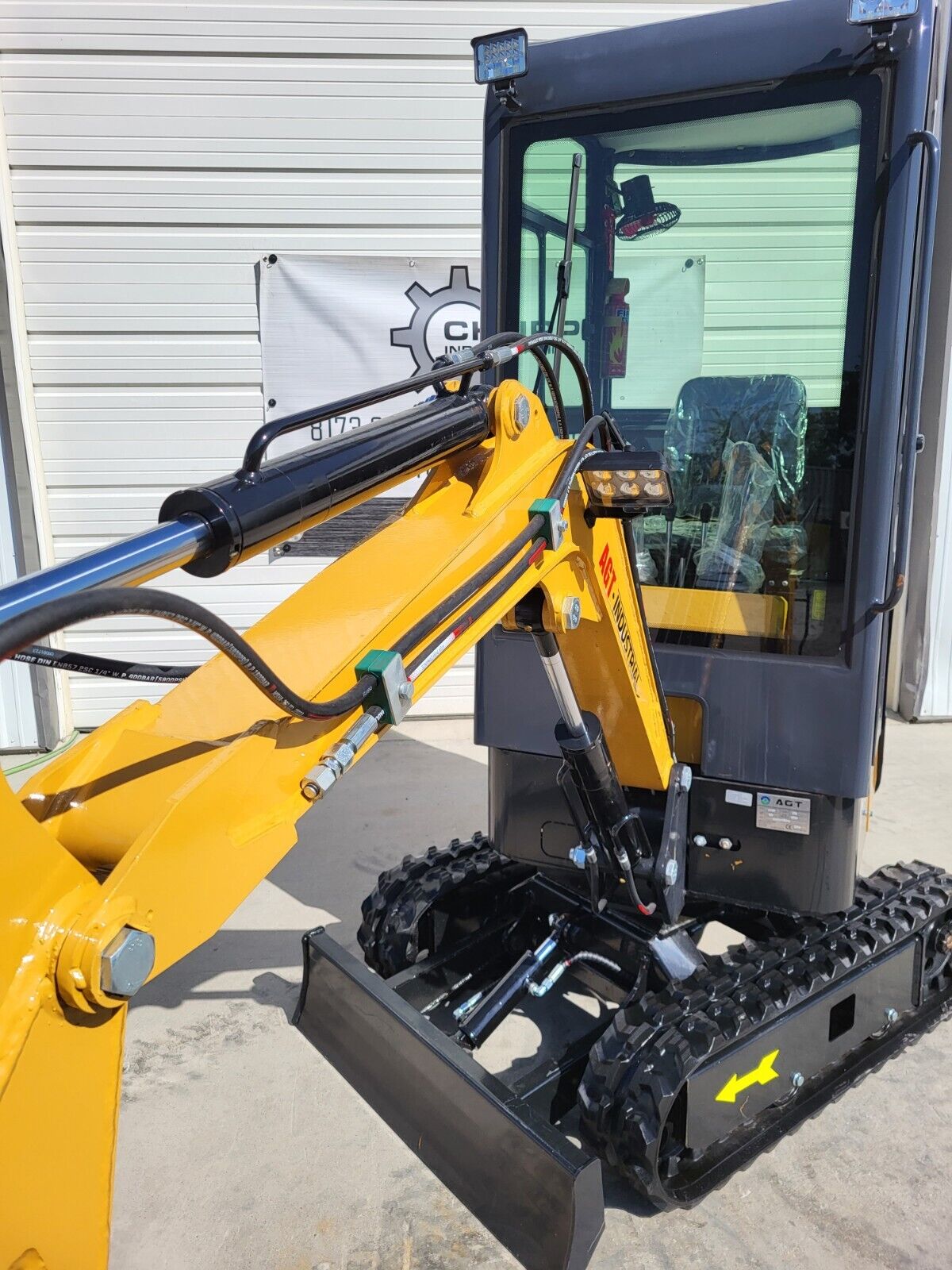

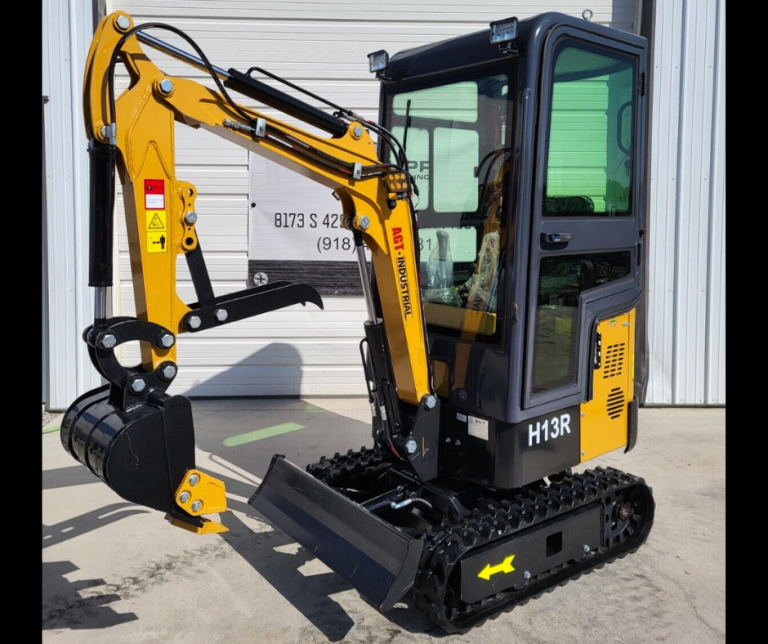

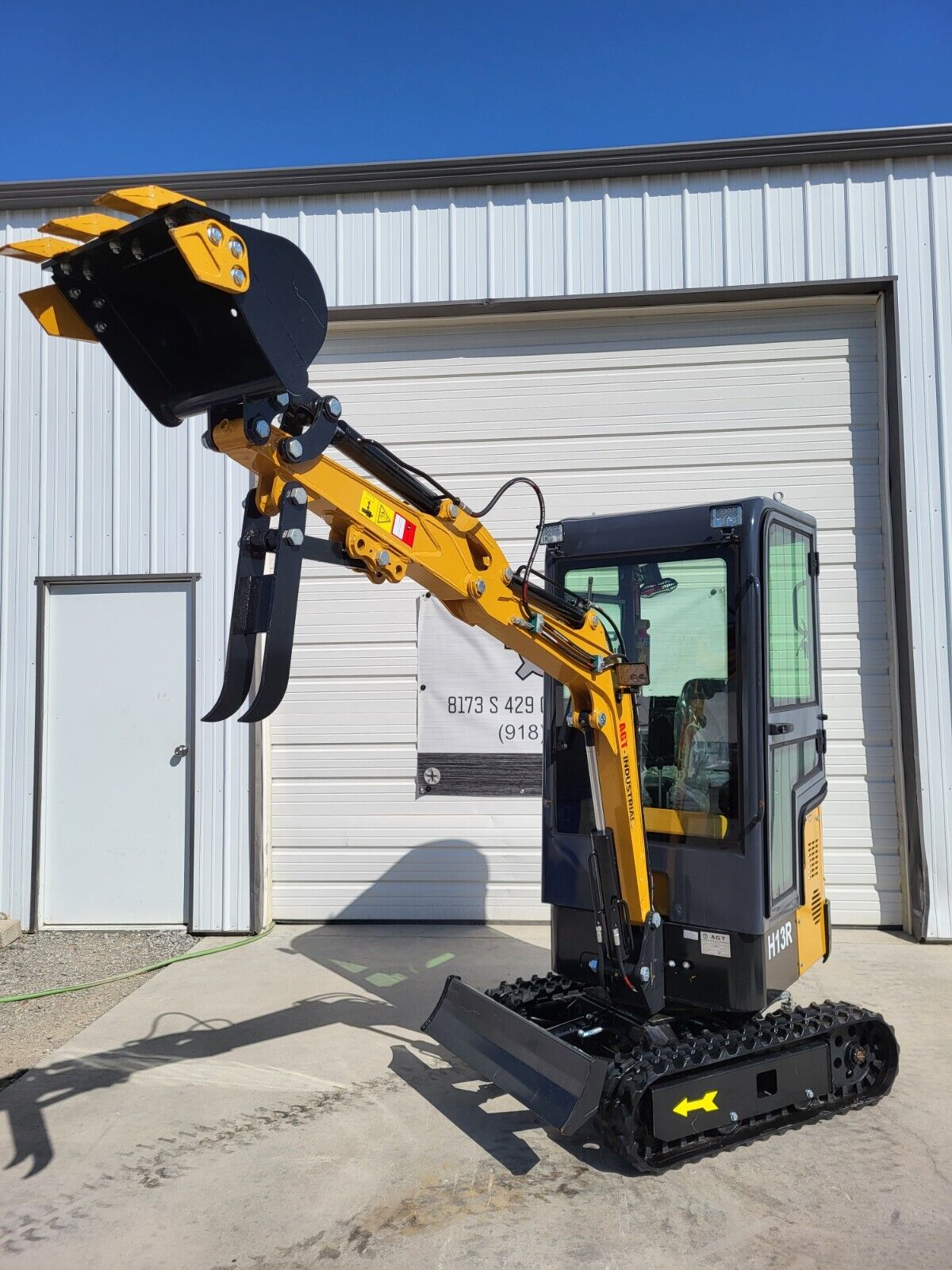

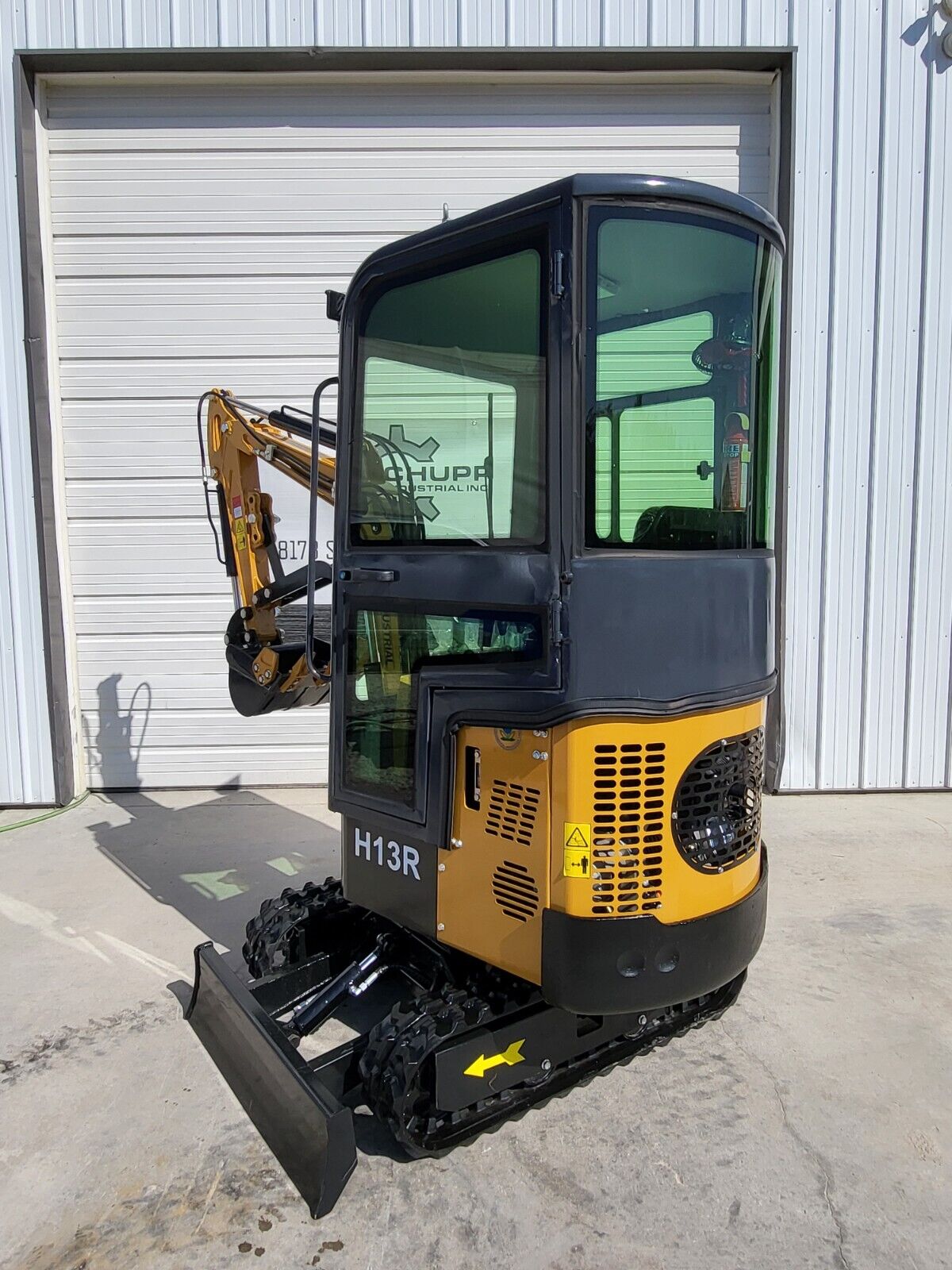

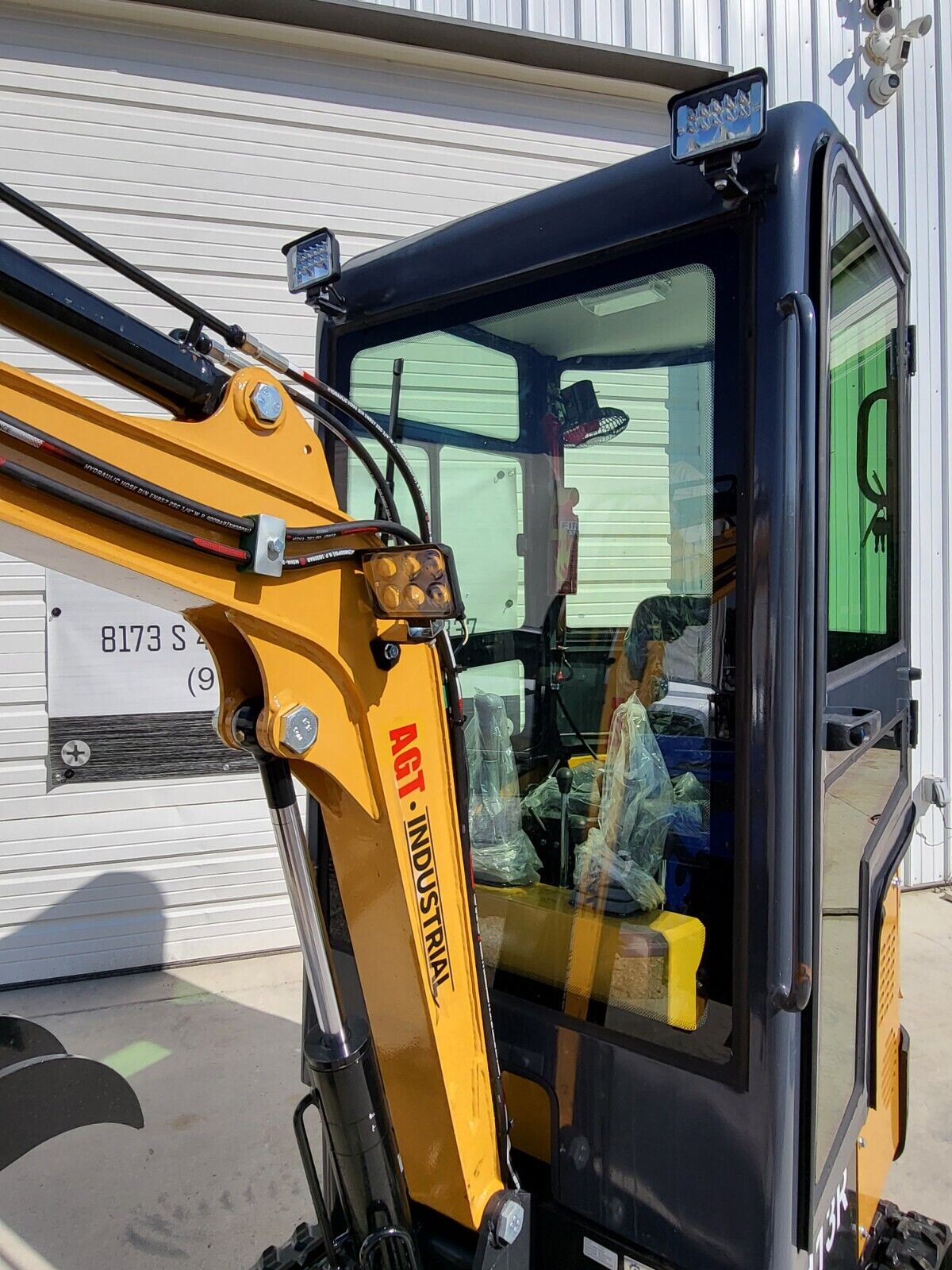

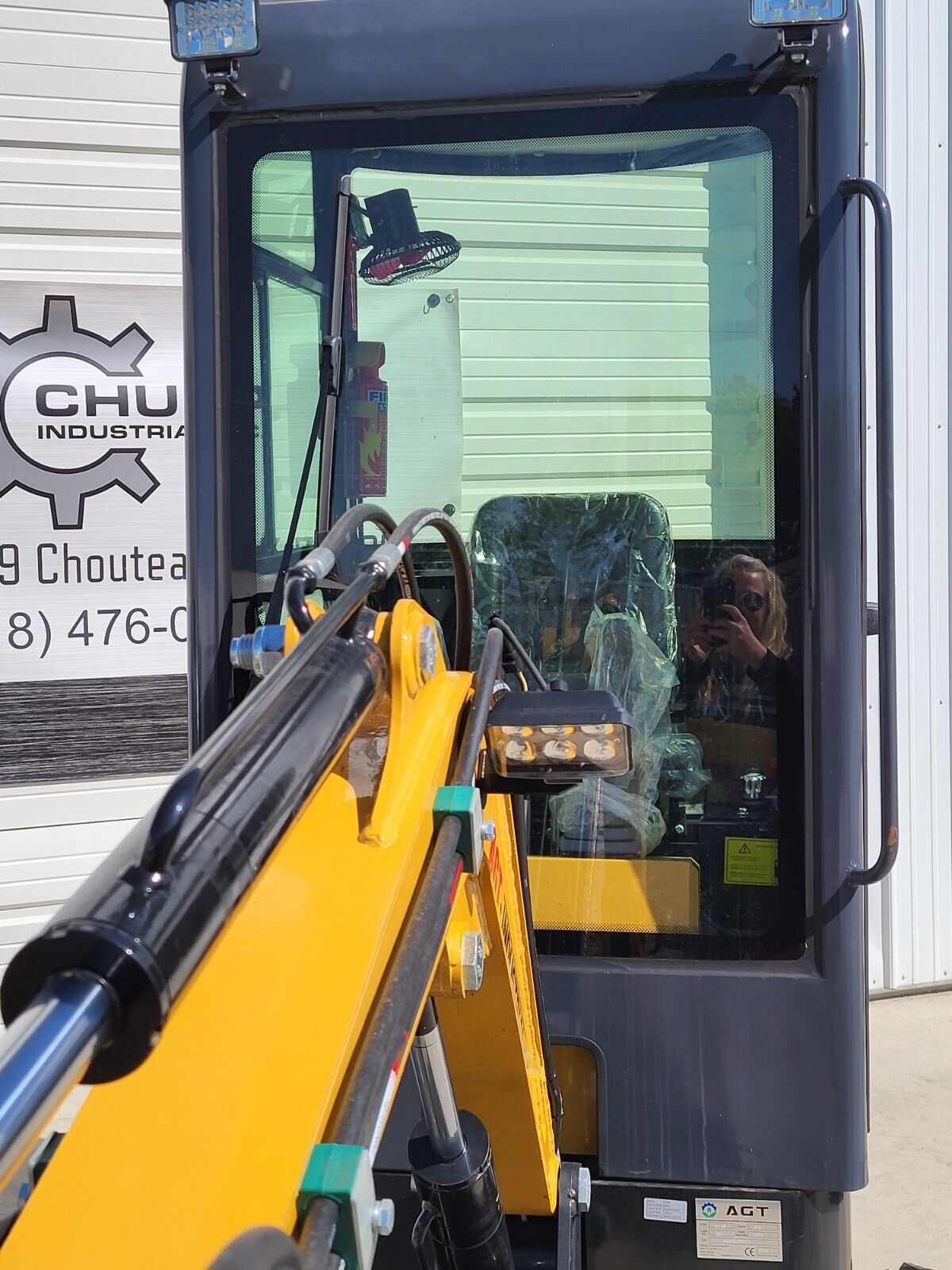

AGT H13R Mini Excavator
This mini excavator is powered by a 13.5 hp engine and offers a rated torque of 21 lb-ft at 3060 rpm. With an operating weight of 1896 lbs (860 kg), it’s highly maneuverable and ideal for tight spaces. It features a .03 cubic yard bucket with a digging force of 2023 lbf, providing excellent digging capability. The max digging depth is 68.9 inches, and the max digging radius is 120.1 inches, making it perfect for tasks like trenching, utility installation, and small-scale excavation. The machine has a fuel tank capacity of 1.7 gallons and a hydraulic tank capacity of 3.96 gallons. With a max slope grade of 30°, dozer height of 12.6 inches, and a max dumping height of 62.6 inches, it can handle various grading and digging applications. The lift capacity is 475 lbs, and its compact design with 7-inch rubber tracks allows for excellent maneuverability in small work areas. This mini excavator is ideal for landscaping, digging foundations, small demolitions, and utility work.
$4,999.99
Video Coming Soon
Material: Steel, Rubber
Rated Torque: 21 lb.-ft. @ 3060 rpm
Rated Power: 13.5 hp/3600 hp/rpm
Fuel Tank Volume: 1.7 gal. (6.6 L)
Hydraulic Tank Volume: 3.96 gal. (15 L)
Overall Track Length: 48.5 in. (1230 mm)
Platform Ground Clearance: 16.2 in. (410 mm)
Bucket Capacity: .03 cubic yards
Bucket Width: 15.7 in. (400 mm)
Max. Bucket Digging Force: 2023 lbf (9 KN)
Overall Height: 7.1 ft. (2160 mm)
Max. Digging Depth: 68.9 in. (1760 mm)
Max. Dumping Height: 62.6 in. (1590 mm)
Max. Digging Radius: 120.1 in. (3050 mm)

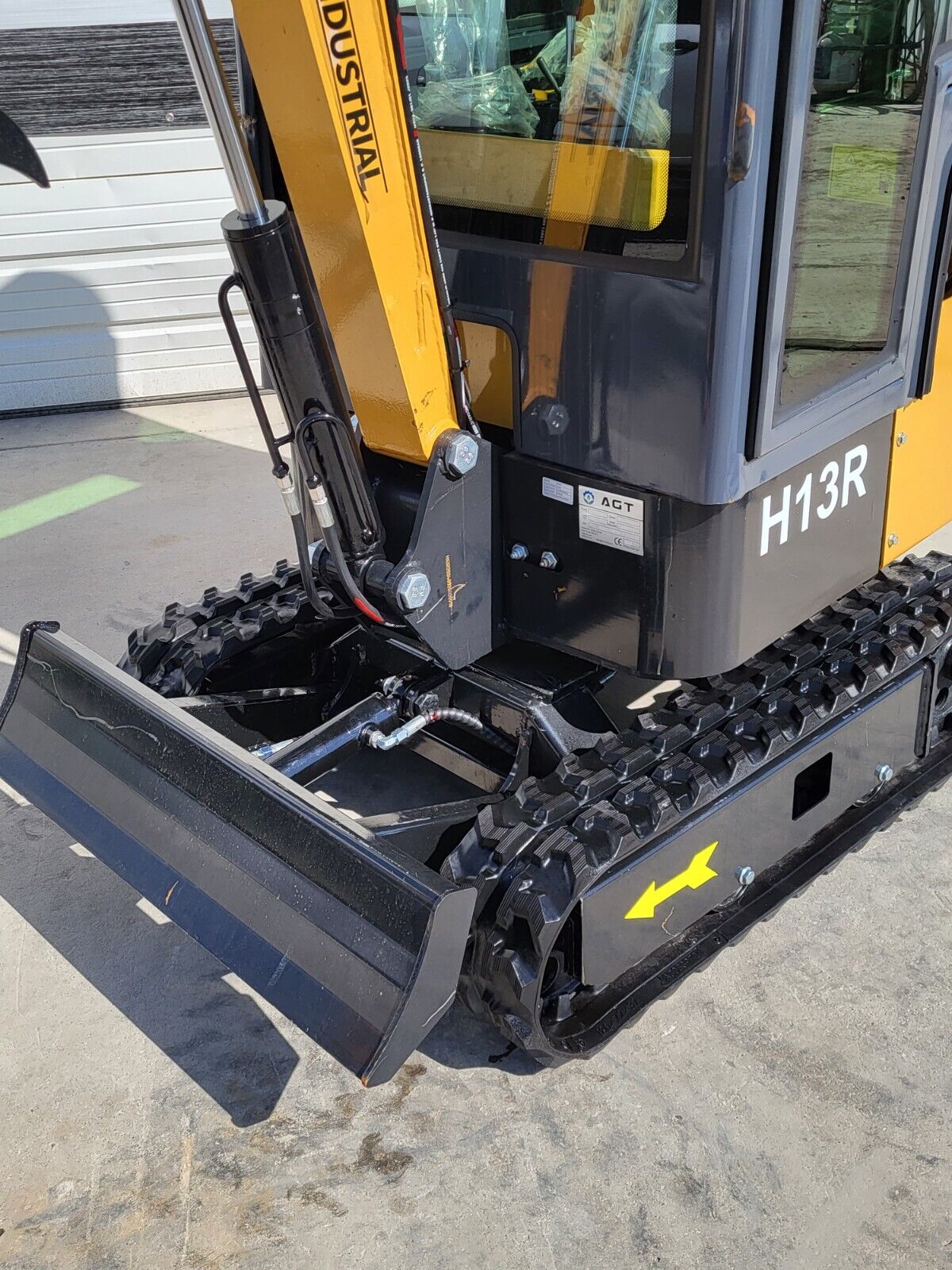

Dozer Height: 12.6 in. (320 mm)
Dozer Depth: 7.8 in. (200 mm)
Max. Slope Grade: 30°
Net Weight: 1896 lb. (860 kg)
Lift Capacity: 475 lbs.
Digging Trenches
For installing underground utilities (water, gas, electrical lines, etc.)
- Digging drainage ditches or swales
Landscaping
- Grading and leveling soil
- Planting trees, shrubs, or bushes
- Excavating for garden beds or flower boxes
Utility Installation
- Digging for underground plumbing or irrigation systems
- Installing septic systems or French drains
Breaking Concrete & Hard Surfaces
- Using a jackhammer attachment to break up concrete, asphalt, or rock
Site Preparation
- Clearing brush, rocks, and debris
- Preparing land for construction or other projects
AND MORE!
The H13R AGT Mini Excavator excels in applications where space is limited, and its variety of attachments allows it to tackle a wide range of tasks efficiently. Whether for construction, landscaping, or utility installation, this mini excavator is a versatile asset for any small to medium-scale project.
Free local pick up at our location:
8173 South 429 Chouteau, OK
Free shipping within 100 Miles of Chouteau, OK
We ship NATIONWIDE! Contact us for a complete quote with shipping and any applicable taxes!
All mini equipment will be sold with a 1 year limited parts warranty.
Our limited 1 year parts warranty covers:
- Replacement cost of the hydraulic pump
- Hydraulic drive motors
- Hydraulic swing motor
We have parts available to repair the engine as well, but it is not included in the 1 year warranty as we are not able to oversee the maintenance of the engine.
We also have replacement hydraulic cylinders available for the boom, bucket and front blade. Our warranty does not cover any necessary labor to diagnose or replace these parts, only the cost of the parts. We can perform any necessary repairs at our location or we can ship any necessary parts for repair as well. Most parts can be replaced in minimal time and our in-house technician can guide you through the repair process. WE sell a wide variety of construction equipment and have a dedicated full-time mechanic that can assist in offering customer support after your purchase.
We offer replacement parts for everything we sell. We keep most of our parts in stock and immediately available. Otherwise, we are able to source the necessary parts to repair your machine. We do our best to keep replacement tracks, drive motors, pumps, hydraulic cylinders, hydraulic hoses, engine components & other common parts in stock.
