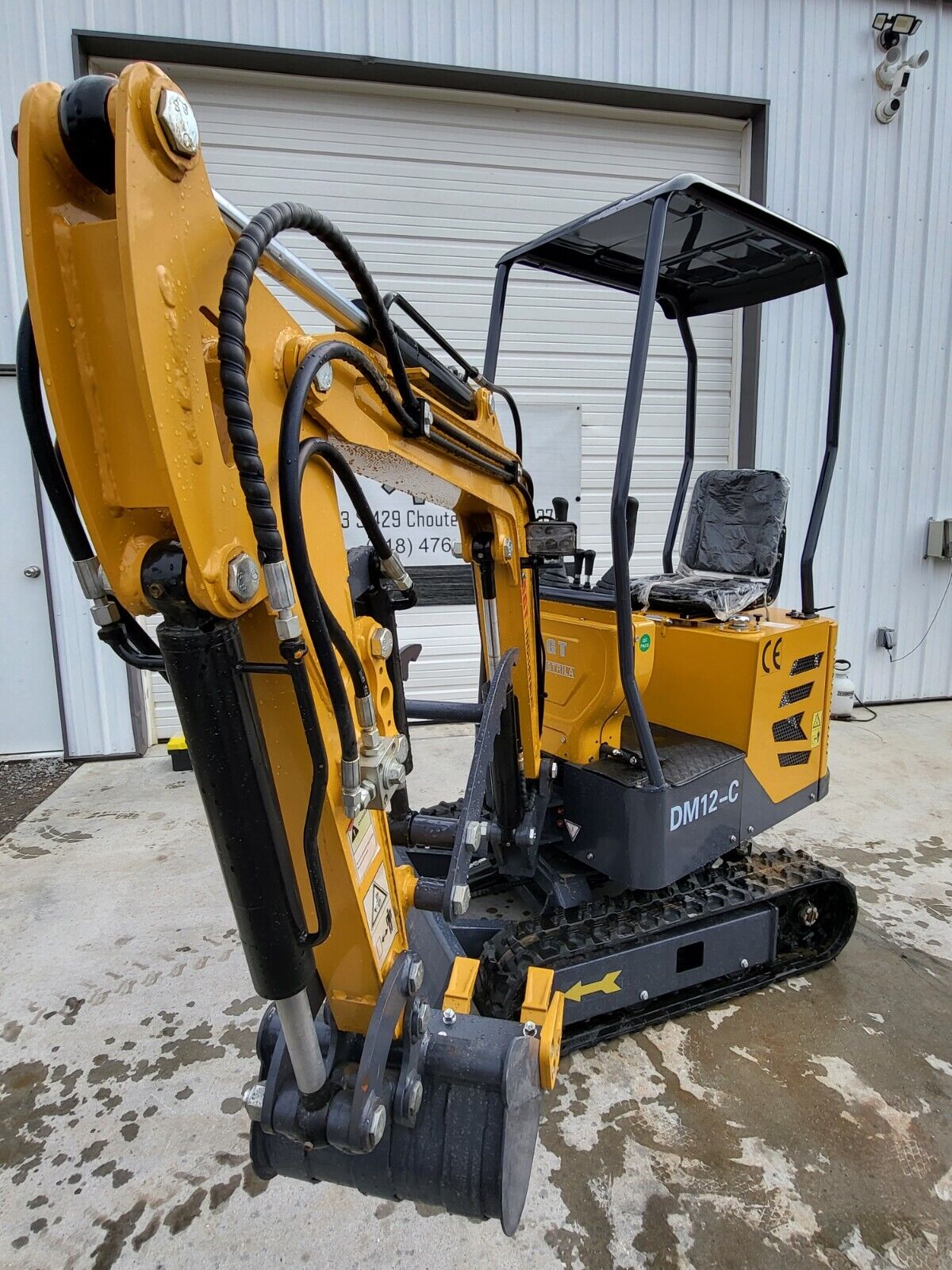

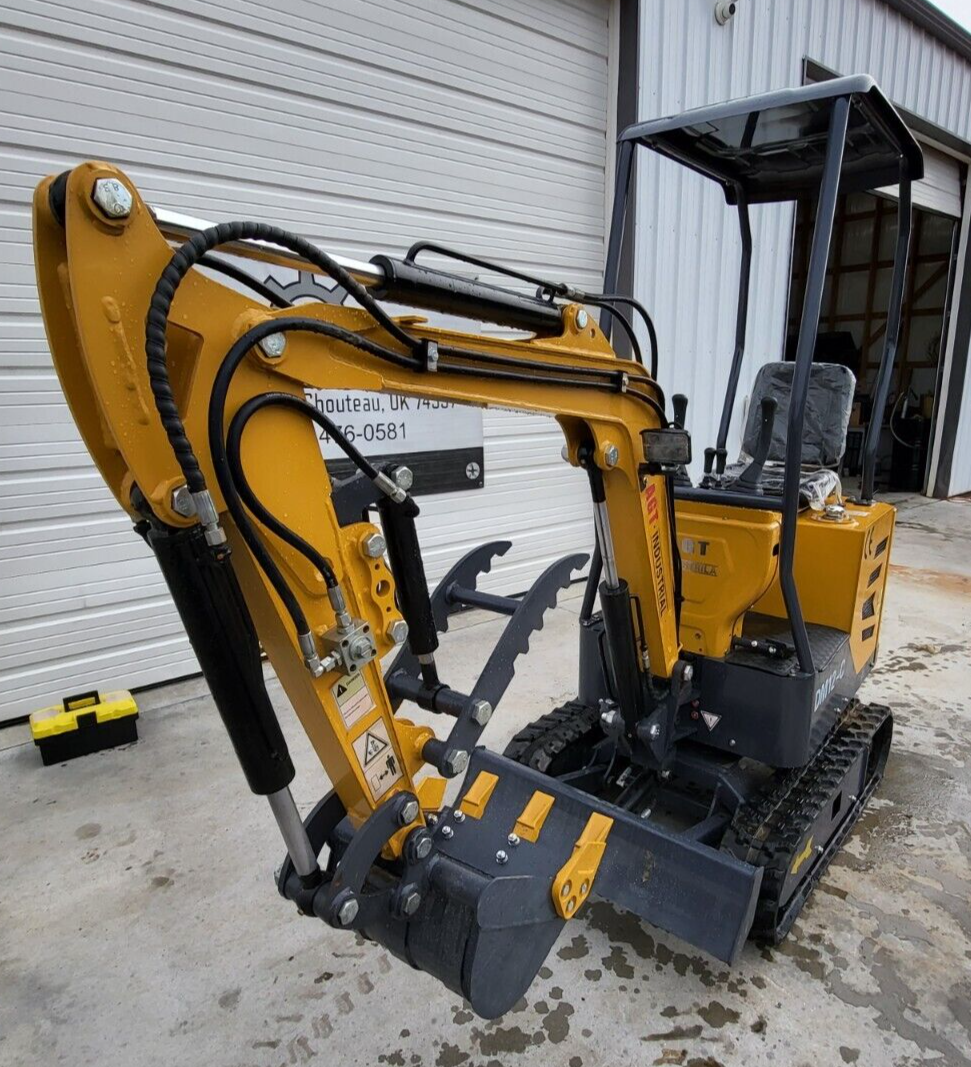

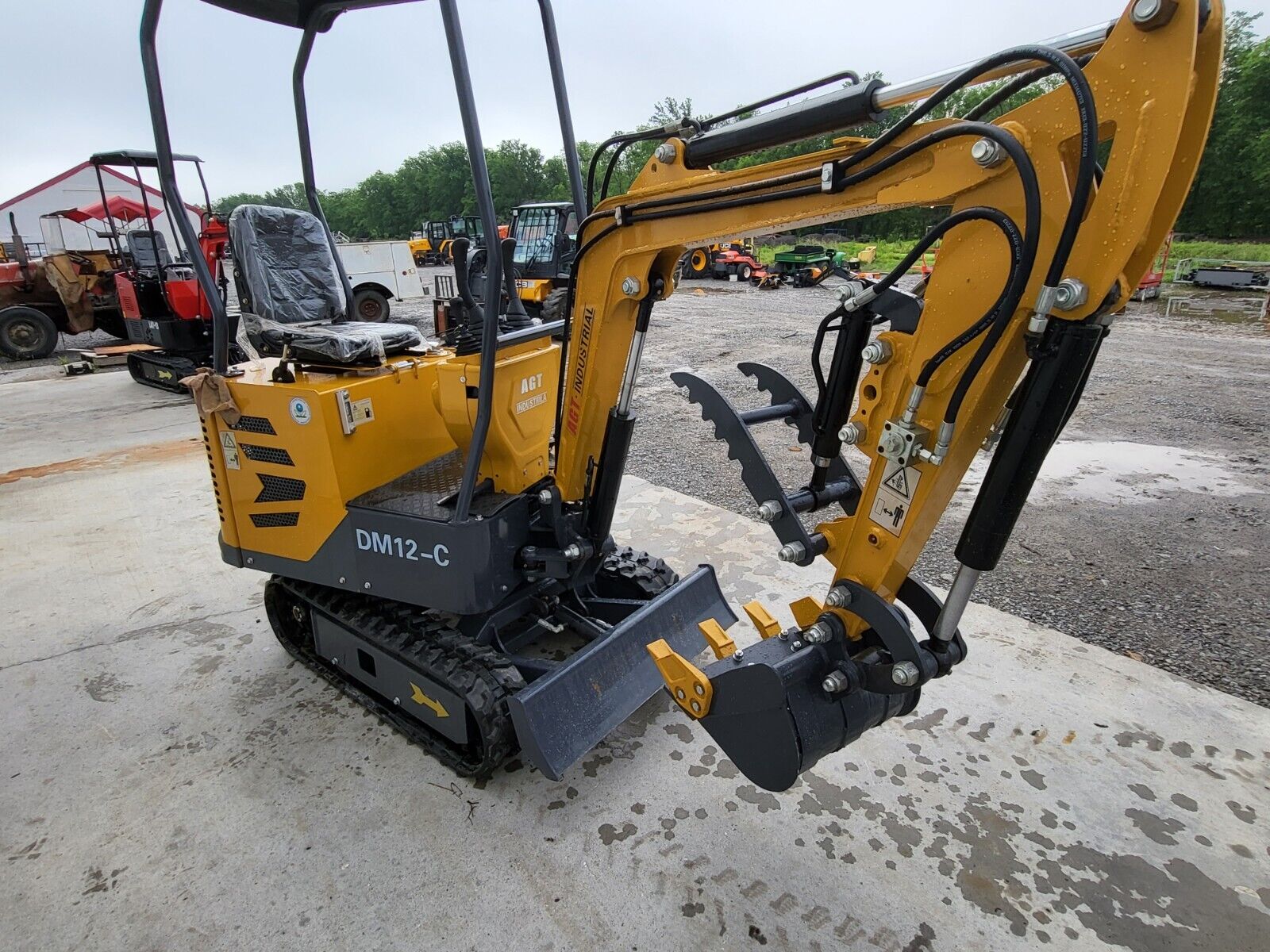

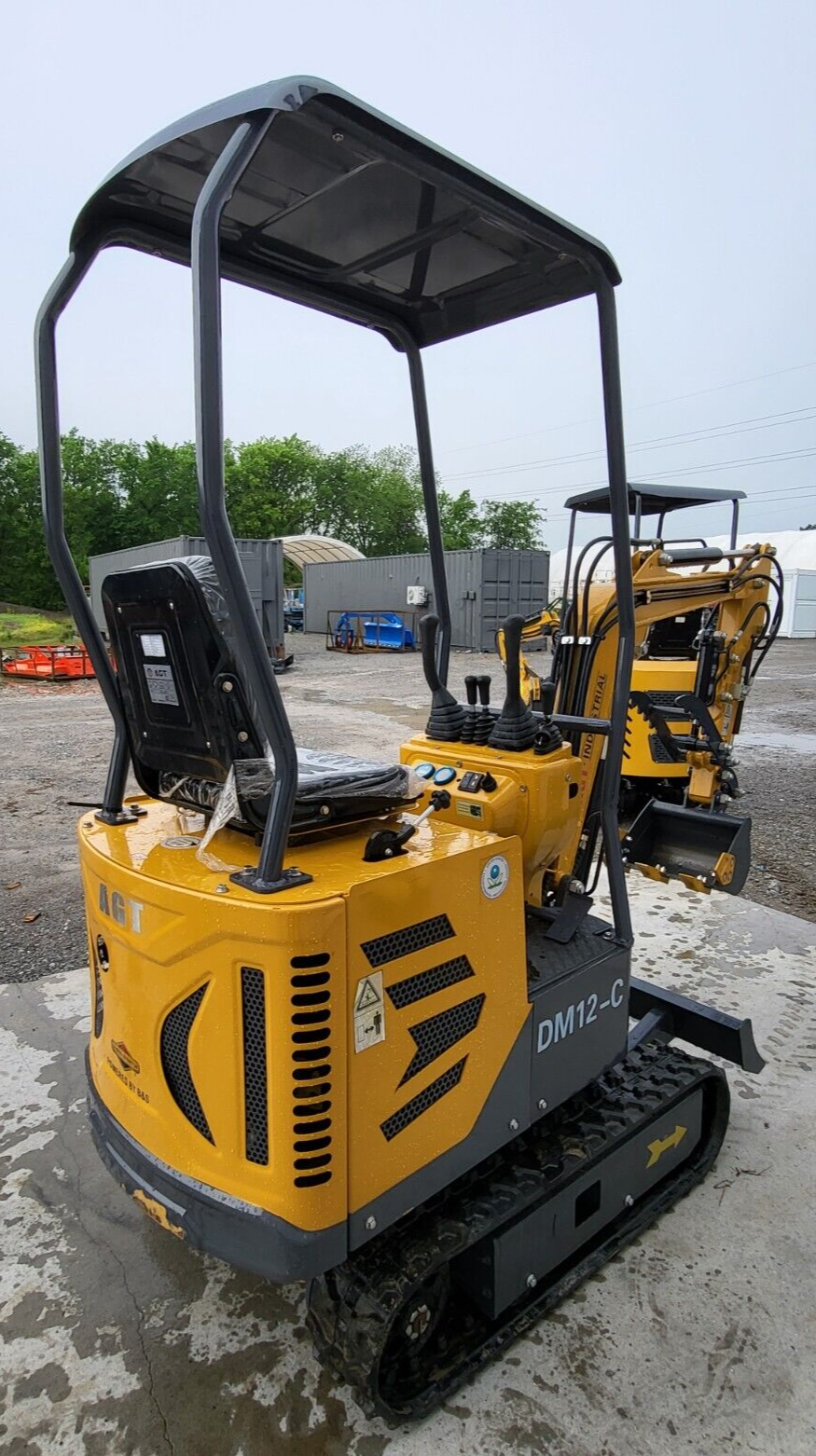

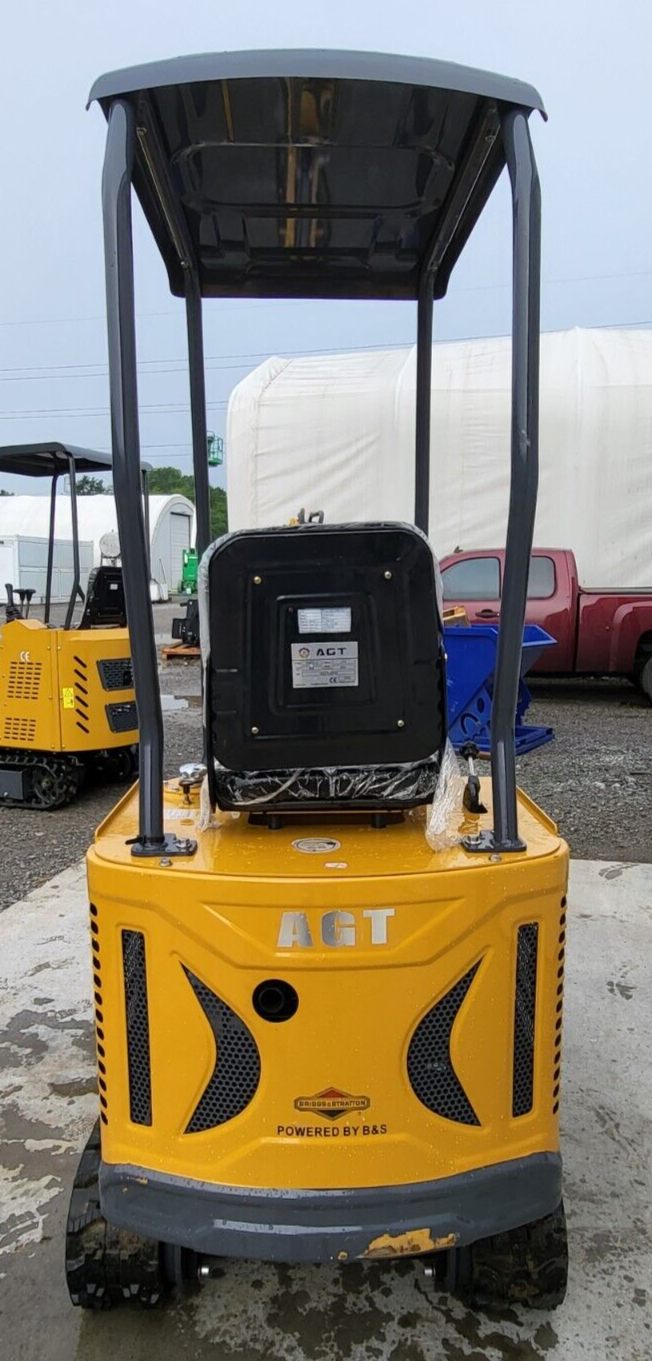

AGT DM12-C 1 Ton
The AGT 1-Ton Mini Excavator is a compact, lightweight machine with a 1-ton operating weight and a maximum digging depth of 5.79 feet, making it perfect for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Despite its small size, this mini excavator delivers impressive power and performance for a variety of tasks. Designed with safety and ease of maintenance in mind, the mini excavator features internal hydraulic hoses, reducing the risk of damage. Additionally, its rear-opening compartments allow for easy access to critical components, minimizing downtime and ensuring optimal operational performance.
$5,999.99
Video Coming Soon
Highlights
- Backfill Blade
- Plumbed for Auxiliary Hydraulics
- Hydraulic Thumb

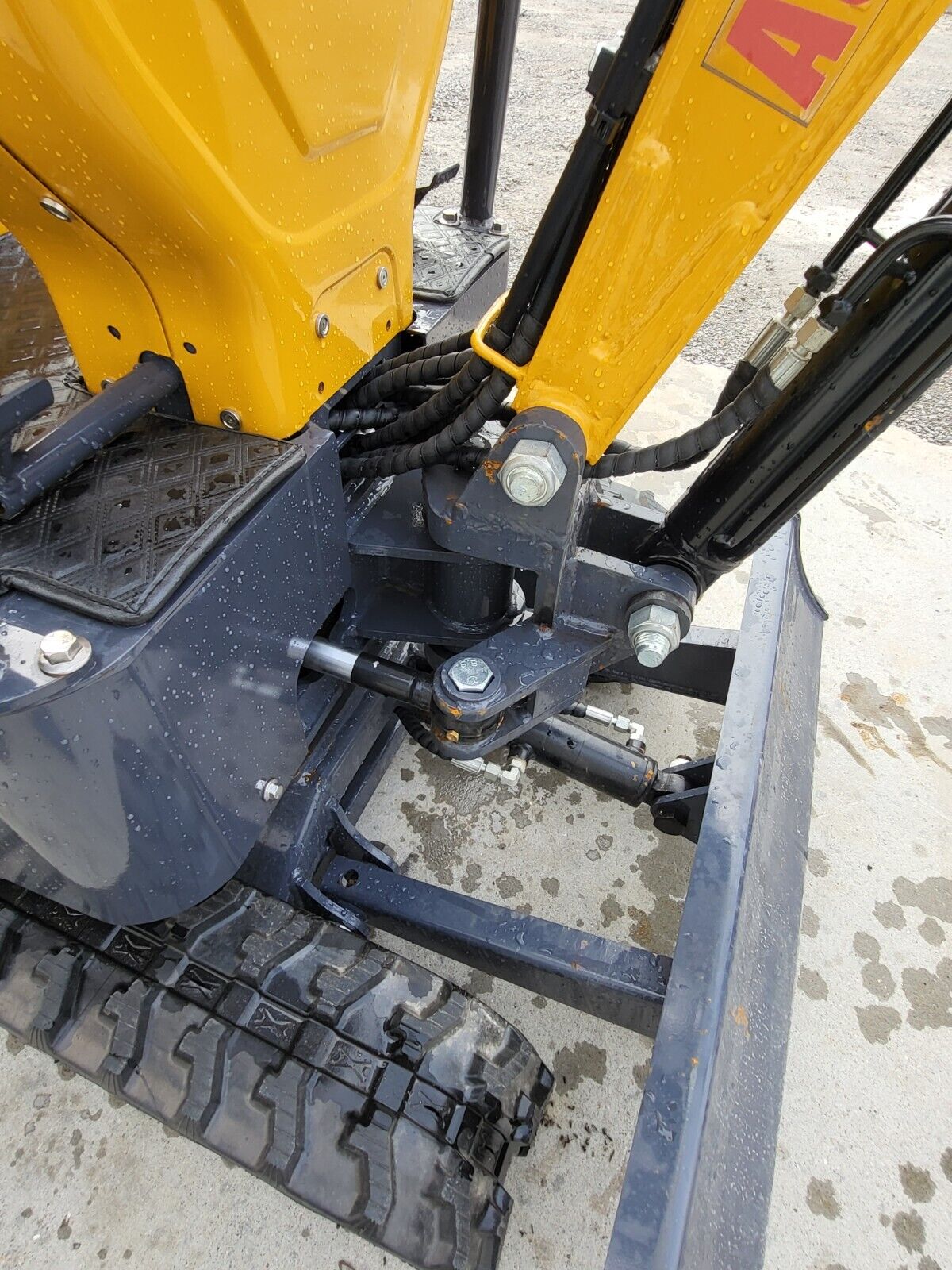

- Articulating Boom
- 16 in. Wide Digging Bucket
- 7 in. wide Rubber Tracks
Technical Data

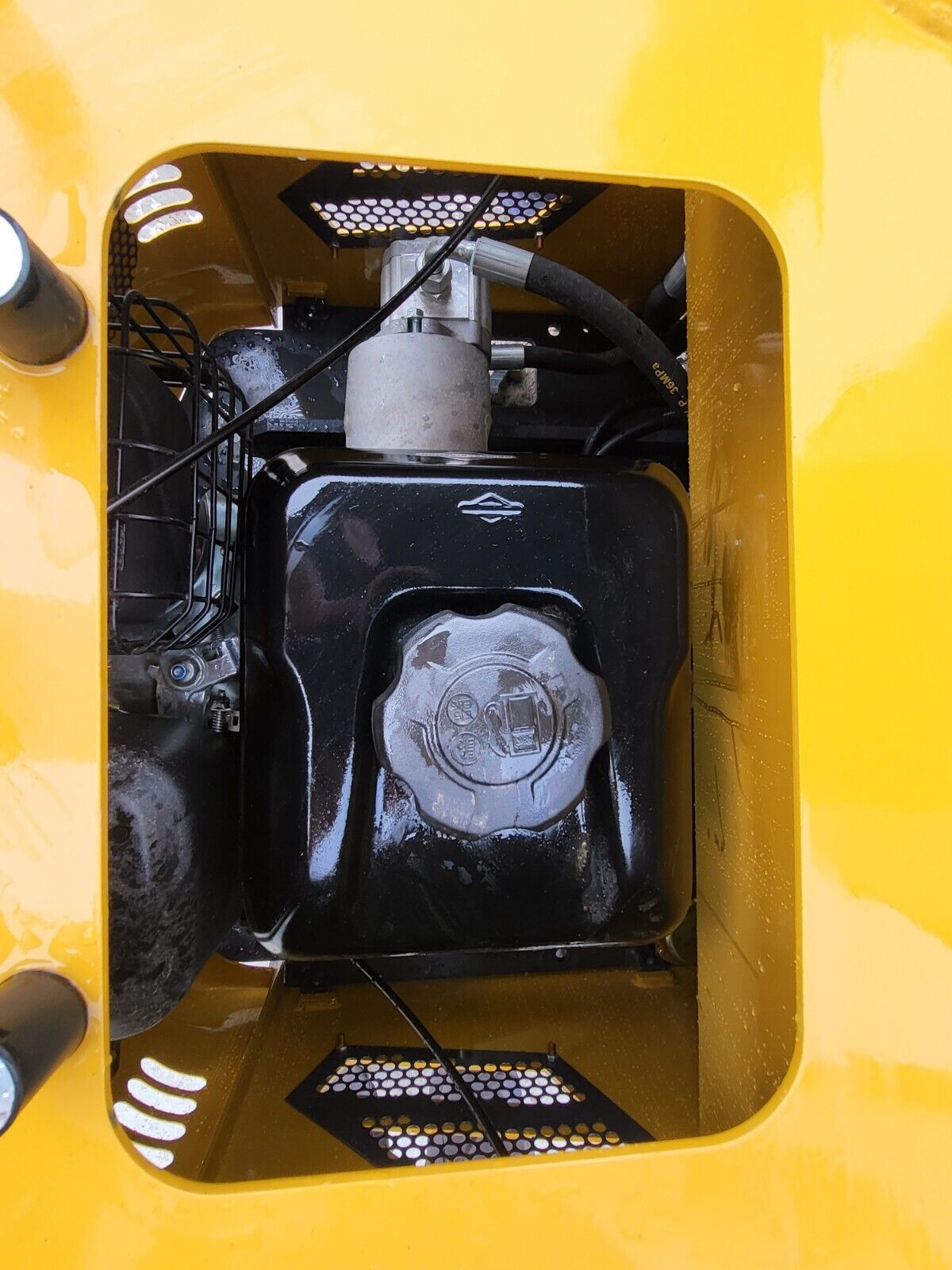

- Engine brand: B&S
- Bucket capacity: (m3) 0.025
- Walking speed low/high speed: (km/h): 0-2
- Climbing ability (%): 30
- Grounding specific pressure (Kpa): 32
- Maximum digging radius: 3080mm 121.26in
- Maximum digging depth: 1764mm 69.45in
- Maximum digging height: 2670mm 105.12in
- Maximum unloading height: 1900mm 74.8in
- Engine model: 13.5HP
- Maximum horsepower (ps): 13.3
- Maximum power (Kw): 9.8
- Fuel Tank: 1.74 Gallons

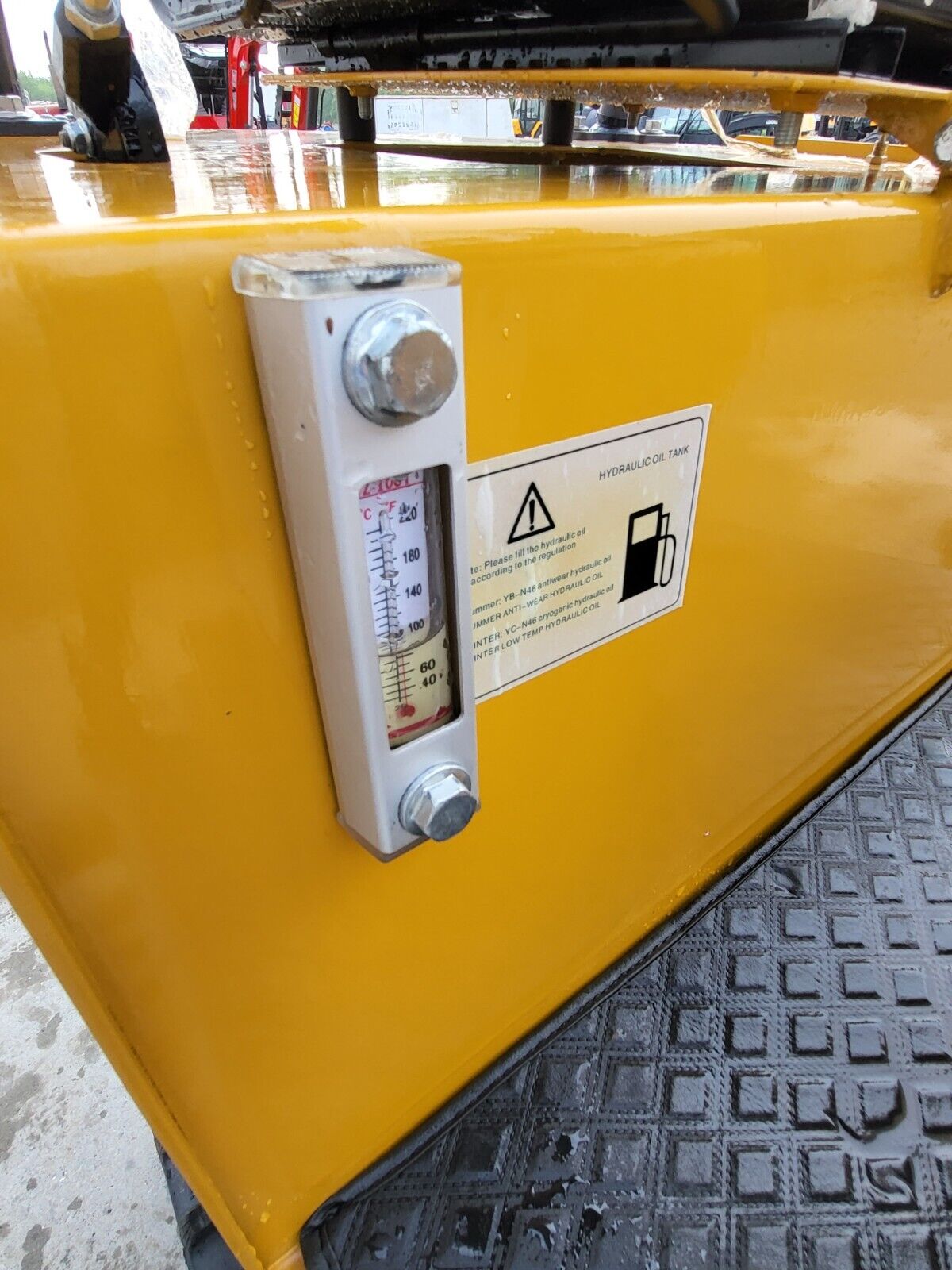

- Hydraulic oil tank: 4.7 Gallons
Hydraulic System
- Rated set pressure(Mpa): 16
- Max. flow rate of main pump(L/min): 21.6
- Multi circuit valve: 8 Multiway Valve
- Multi-way valve brand: North
- Rated set pressure(Mpa): 16
- Max. set pressure(Mpa): 16
- Traveling hydraulic motor type: BM6-310
- Traveling Motor Brand: IC Base
- Motor Displacement: 310
- Rotary hydraulic motor type: BM2-250
- Tensioning Form: Mechanical Tension
Digging Trenches
For installing underground utilities (water, gas, electrical lines, etc.)
- Digging drainage ditches or swales
Landscaping
- Grading and leveling soil
- Planting trees, shrubs, or bushes
- Excavating for garden beds or flower boxes
Utility Installation
- Digging for underground plumbing or irrigation systems
- Installing septic systems or French drains
Breaking Concrete & Hard Surfaces
- Using a jackhammer attachment to break up concrete, asphalt, or rock
Site Preparation
- Clearing brush, rocks, and debris
- Preparing land for construction or other projects
AND MORE!
The DM12-C AGT Mini Excavator excels in applications where space is limited, and its variety of attachments allows it to tackle a wide range of tasks efficiently. Whether for construction, landscaping, or utility installation, this mini excavator is a versatile asset for any small to medium-scale project.
Free local pick up at our location:
8173 South 429 Chouteau, OK
Free shipping within 100 Miles of Chouteau, OK
We ship NATIONWIDE! Contact us for a complete quote with shipping and any applicable taxes!
All mini equipment will be sold with a 1 year limited parts warranty.
Our limited 1 year parts warranty covers:
- Replacement cost of the hydraulic pump
- Hydraulic drive motors
- Hydraulic swing motor
We have parts available to repair the engine as well, but it is not included in the 1 year warranty as we are not able to oversee the maintenance of the engine.
We also have replacement hydraulic cylinders available for the boom, bucket and front blade. Our warranty does not cover any necessary labor to diagnose or replace these parts, only the cost of the parts. We can perform any necessary repairs at our location or we can ship any necessary parts for repair as well. Most parts can be replaced in minimal time and our in-house technician can guide you through the repair process. WE sell a wide variety of construction equipment and have a dedicated full-time mechanic that can assist in offering customer support after your purchase.
We offer replacement parts for everything we sell. We keep most of our parts in stock and immediately available. Otherwise, we are able to source the necessary parts to repair your machine. We do our best to keep replacement tracks, drive motors, pumps, hydraulic cylinders, hydraulic hoses, engine components & other common parts in stock.
